Turck B2NF85H-QR20-IOLX3-H1141
SKU: CS3787265MPN: B2NF85H-QR20-IOLX3-H1141Alternate Part #: 100020901UPC/EAN: 4047101527667
100020901 - NO DESC
$683.08
UnitAvailable on backorder
Product Details

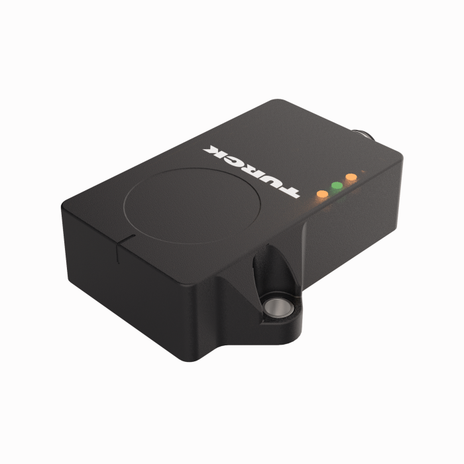

Dynamic Inclinometer
- Rectangular, plastic, Ultem
- Status displayed via LED
- Angle detection via two axes with ±85 ° measuring range
- Temperature detection from -40 °C to 85 °C
- High protection class IP68/IP69K
- Protected against salt spray and rapid temperature change
- 18…30 VDC
- M12 × 1 connector, 4-pin
- Communication via IO-Link
Attributes
| Ambient Temperature | -40…+85 °C |
| Communication Protocol | IO-Link |

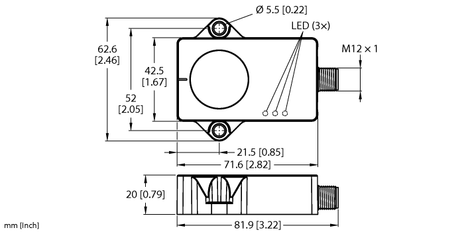

| Construction Size | 71.6 x 62.6 x 20 mm |
| Customs Tariff Number | 90318080000.0000 |
| Ecl Ss Code V5 1 4 | 27279090 -/- Sensor technology (not classified) |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Plastic, Ultem |
| Measuring Principle | Combination of gyroscopes and accelerometers |
| Measuring Range | -85…85° |
| Number Of Measuring Axes | 2.0000 |
| Operating Voltage | 18…30 VDC |
| Protection Class | IP68/IP69K |
Specifications
| SKU | CS3787265 |
|---|---|
| MPN | B2NF85H-QR20-IOLX3-H1141 |
| Alternate Part # | 100020901 |
| UPC/EAN | 4047101527667 |
