Eaton 13103AQD03
SKU: CS377860MPN: 13103AQD03UPC/EAN: 782113843605
Eaton Comet 18mm tubular photoelectric sensor
$590.40
UnitAvailable on backorder
Product Details
Eaton Comet 18mm tubular photoelectric sensor, Perfect Prox Photoelectric Sensor, Comet, Back Ground Suppression, 9 in range, Forward Viewing, Output ON, Dual key micro, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, 4 pin, AC: L1 switched
Attributes
| Connection | Dual key micro |
| Contact Configuration | AC: L1 switched DC: NPN open collector |
| Contact Rating | 300 mA AC/DC at 20-264 Vac/15-30 Vdc |
| Enclosure Material | Polyurethane foam (RIM) |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K |
| Input Voltage | 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN) |
| Led Indicator | Output ON |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Series | Comet |
| Type | Back Ground Suppression |
Specifications
| SKU | CS377860 |
|---|---|
| MPN | 13103AQD03 |
| UPC/EAN | 782113843605 |
You may also like
Eaton 13104RQD03
Contact us for pricing and availability
Eaton 13104AQD03
$590.40Unit
Eaton 13101AQD03
$590.40Unit
Eaton 13104RS6413
Contact us for pricing and availability
Eaton 13106RQD03
Contact us for pricing and availability
Eaton 12100AQD03
Contact us for pricing and availability
Eaton 13100RQD03
Contact us for pricing and availability
Eaton 14101RQD03
Contact us for pricing and availabilityEaton 13101A6513
Contact us for pricing and availability

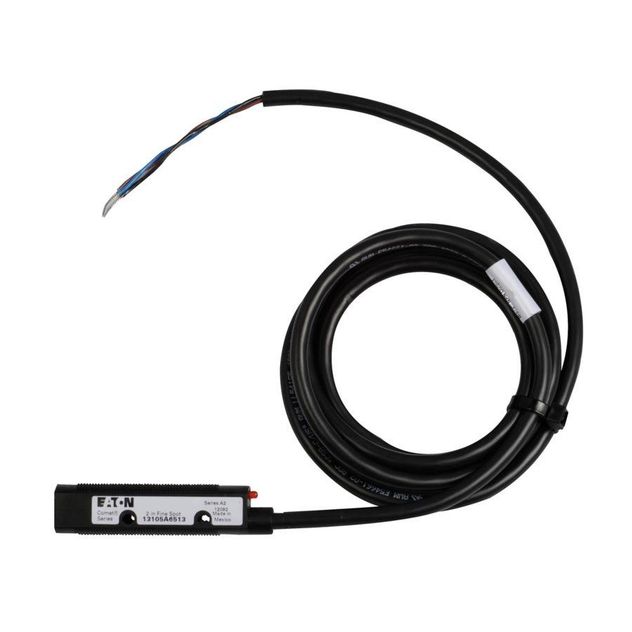

Eaton 13105A6513
Contact us for pricing and availability

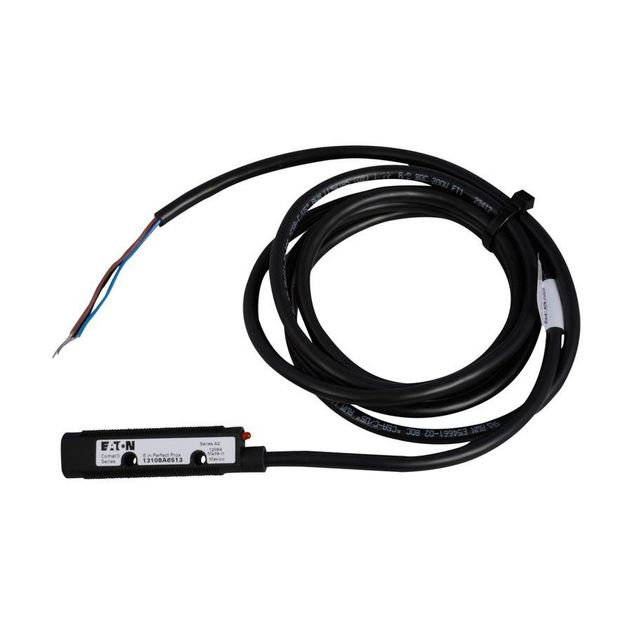

Eaton 13108A6513
