Eaton 13104RQD03
SKU: CS34149MPN: 13104RQD03UPC/EAN: 782113968544
Eaton Comet 18mm tubular photoelectric sensor
Contact us for pricing and availability
Product Details
Eaton Comet 18mm tubular photoelectric sensor, Perfect Prox Photoelectric Sensor, Comet, Back Ground Suppression, Right Angle, Output ON, Dual key micro, 300 mA AC/DC at 20-264 Vac/15-30 Vdc, 4 pin, AC: L1 switched
Attributes
| Connection | Dual key micro |
| Contact Configuration | DC: NPN open collector AC: L1 switched |
| Contact Rating | 300 mA AC/DC at 20-264 Vac/15-30 Vdc |
| Enclosure Material | Polyurethane foam (RIM) |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13, IP69K |
| Input Voltage | 20-264 Vac at 50/60 Hz, 15-30 Vdc (NPN) |
| Led Indicator | Output ON |
| Maximum Ac Current | 300 mA |
| Maximum Dc Current | 300 mA |
| Number Of Pins | 4.0000 |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -40 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Sensor Type | Back ground suppression |
| Series | Comet |
Specifications
| SKU | CS34149 |
|---|---|
| MPN | 13104RQD03 |
| UPC/EAN | 782113968544 |
You may also like
Eaton 13104AQD03
$590.40Unit
Eaton 13101AQD03
$590.40Unit
Eaton 13103AQD03
$590.40Unit
Eaton 13104RS6413
Contact us for pricing and availabilityEaton 13101A6513
Contact us for pricing and availability
Eaton 13105A6513
Contact us for pricing and availability
Eaton 13108A6513
Contact us for pricing and availability

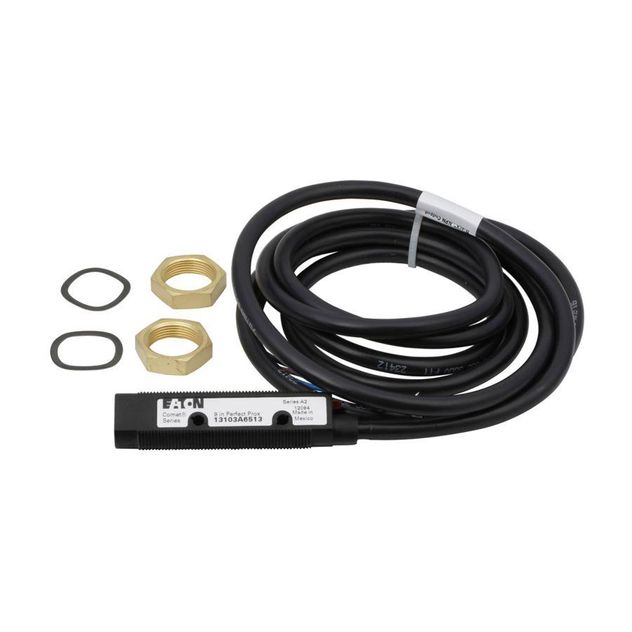

Eaton 13103A6513
