Square D XCSLF3737333

Name: Square D XCSLF3737333
Brand: Square D
SKU: CS3657626
Availability: OutOfStock

SKU: CS3657626MPN: XCSLF3737333

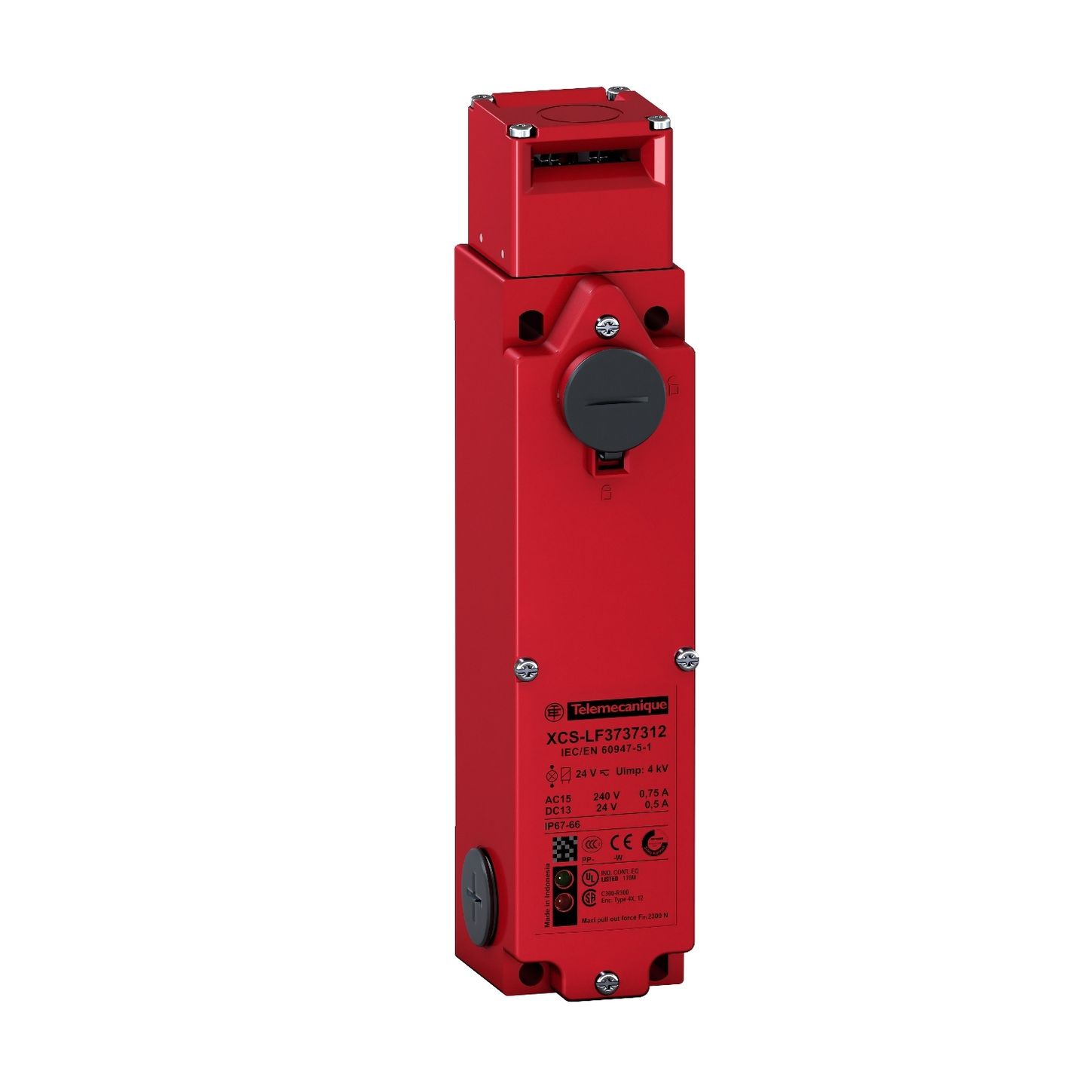

Safety switch, Telemecanique Safety switches XCS, metal XCSLF 4NC+2 NO, slow break, 3 entries tapped ½” NPT, 120 V

Discontinued - Contact Us For Pricing & Availability

Product Details

Metal safety switch XCSLF-4NC+2NO, slow break - 3 entries tapped ½” NPT - 120V

Ithe Conventional Enclosed Thermal Current	0.167
Ambient Air Temperature For Operation	-25-60 °C
Ambient Air Temperature For Operation 1	-25-60 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zamak
Component Name	XCSLF
Contact Operation	slow-break, break before make
Contacts Type And Composition	2 NC + 1 NO
Design	slim
Electromagnet Interlocking	locking on de-energisation and unlocking on energisation of solenoid
Head Material	zamak
Head Type	key operated turret head
Load Factor	1.0000
Locking Options Description	with interlocking, locking by solenoid
Material	metal
Maximum Actuation Speed	0.5 m/s
Maximum Actuator Forcible Withdrawal Rtc	3000 N
Maximum Load Current	<= 15 A
Mechanical Durability	1000000 cycles
Minimum Actuation Speed	0.01 m/s
Minimum Actuator Force For Extraction	20 N
Minimum Switching Voltage	17 V
Number Of Poles	3.0
Positive Opening	with NC contact
Product Certifications	TÜV# #UL# #CSA
Product Or Component Type	safety switch
Protective Treatment	TC
Range Of Product	Telemecanique Safety switches XCS
Signalling Circuit Type	AC
Standards	CSA C22.2 No 14# #EN/IEC 62061# #UL 508# #EN/ISO 13849-1# #EN 1088/ISO 14119# #EN/IEC 60204-1# #EN/IEC 60947-5-1
Supply Frequency	50/60 Hz
Supply Voltage Type	AC/DC
