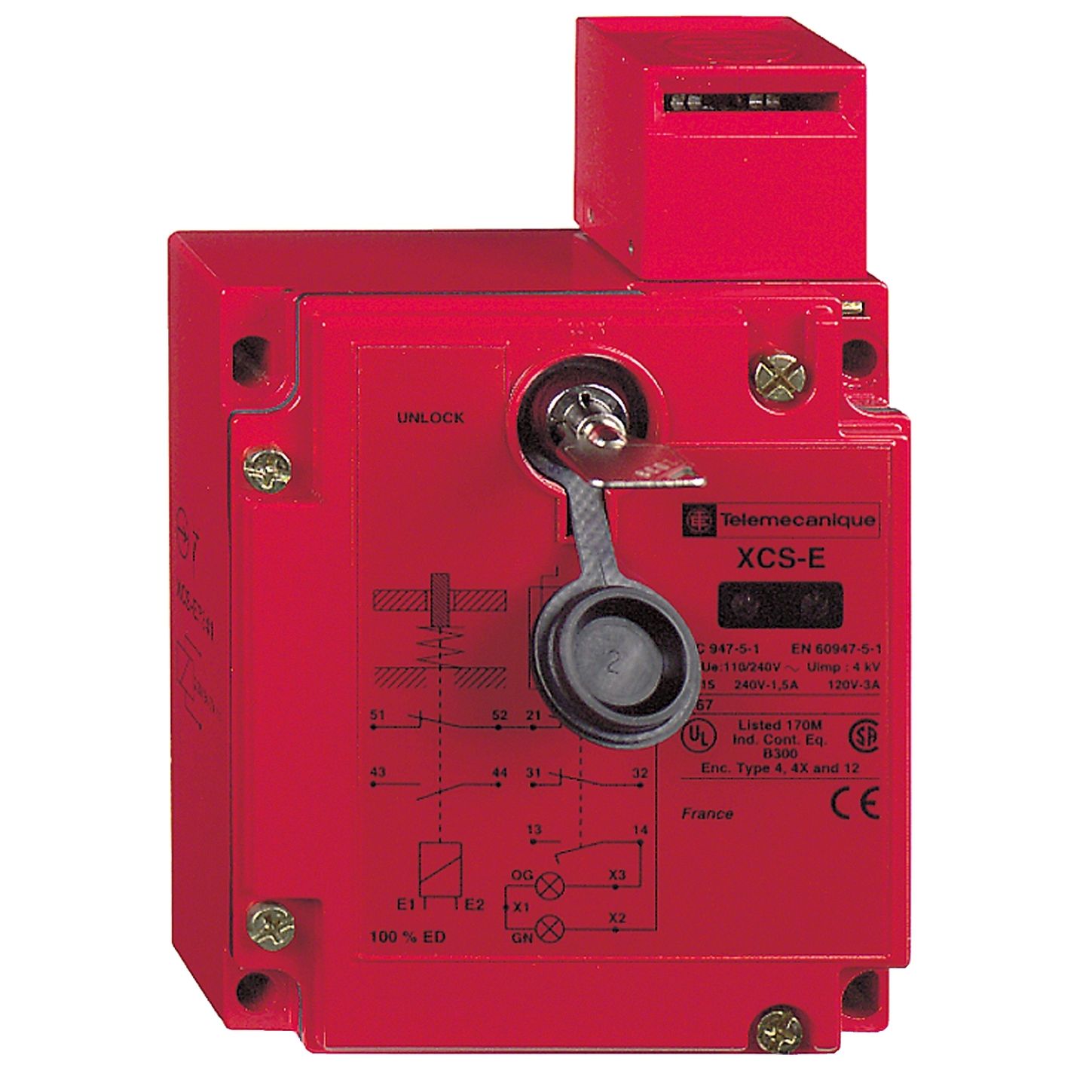

Square D XCSE5331

Name: Square D XCSE5331
Brand: Square D
SKU: CS4814042
Availability: OutOfStock

SKU: CS4814042MPN: XCSE5331

Safety switch, Telemecanique Safety switches XCS, metal XCSE, 1NC+2 NO, slow break, 2entries tapped Pg 13 110/120 V

Product Details

Metal safety switch XCSE - 1NC+2NO- slow break- 2entries tapped Pg 13-110/120V

Ithe Conventional Enclosed Thermal Current	0.25
Actuator Forcible Withdrawal Rtc	2000 N
Ambient Air Temperature For Operation	-25-40 °C
Ambient Air Temperature For Operation 1	-25-40 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	zamak
Cable Outer Diameter	9-12 mm
Cable Outer Diameter 1	9-12 mm
Component Name	XCSE
Contact Operation	slow-break, break before make
Contacts Type And Composition	1 NC + 2 NO
Design	rectangular
Electromagnet Interlocking	locking on de-energisation and unlocking on energisation of solenoid
Head Material	zamak
Head Type	key operated turret head
Load Factor	1.0000
Locking Options Description	with interlocking, locking by solenoid
Material	metal
Maximum Actuation Speed	0.5 m/s
Mechanical Durability	1000000 cycles
Minimum Actuation Speed	0.01 m/s
Minimum Actuator Force For Extraction	20 N
Number Of Poles	3.0
Positive Opening	with NC contact
Product Certifications	CSA# #UL
Product Or Component Type	safety switch
Protective Treatment	TC
Range Of Product	Telemecanique Safety switches XCS
Signalling Circuit Consumption	7 mA
Signalling Circuit Type	AC
Standards	EN/IEC 60204-1# #UL 508# #EN/ISO 12100# #CSA C22.2 No 14# #EN 1088/ISO 14119# #EN/IEC 60947-5-1
Supply Frequency	50/60 Hz
Supply Voltage Type	AC/DC
