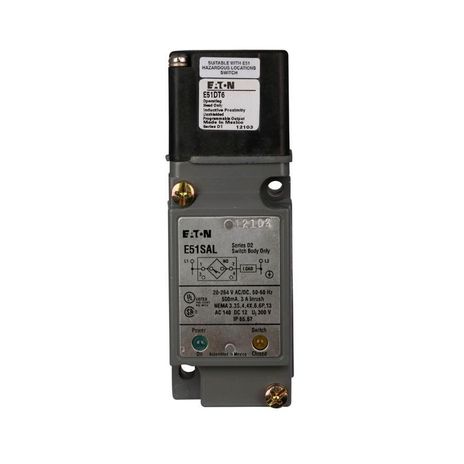

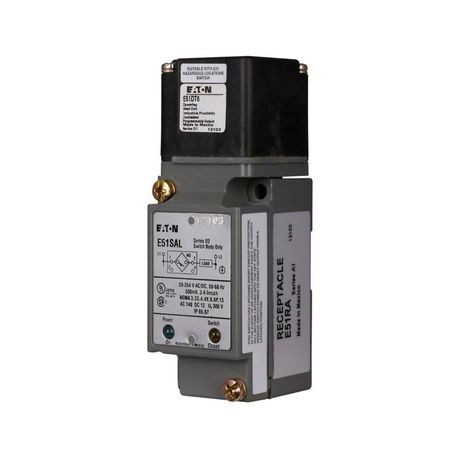

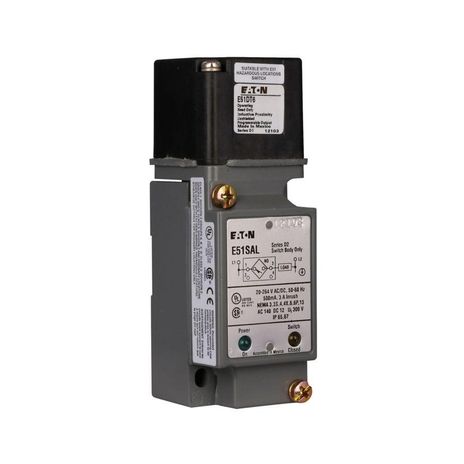

Eaton E51ALT6
SKU: CS3585570MPN: E51ALT6UPC/EAN: 782113107196
Eaton E51 NEMA limit switch inductive proximity sensor
$457.64
Unit5 in stock
Product Details
Eaton E51 NEMA limit switch inductive proximity sensor, Inductive Modular Proximity Sensor, E51, 0.94 in range, Top Sensing, Unshielded, Output ON (1 LED per output), Screw Terminals, 500 mA AC/DC solid state output, Alternate frequency
Attributes
| Actuator Function | Unshielded |
| Connection | Screw terminal |
| Contact Configuration | NO/NC |
| Contact Rating | 500 mA AC/DC solid state output |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67 |
| Frequency Rating | Alternate |
| Input Voltage | 20-264 Vac/dc |
| Led Indicator | Output ON (1 LED per output) |
| Maximum Ac Current | 500 mA |
| Maximum Dc Current | 500 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Series | E51 |
| Type | Inductive Modular Proximity Sensor |
Specifications
| SKU | CS3585570 |
|---|---|
| MPN | E51ALT6 |
| UPC/EAN | 782113107196 |
