Eaton E51ALS5

Name: Eaton E51ALS5
Brand: Eaton
SKU: CS969838
Price: 457.64 USD
Availability: OutOfStock

SKU: CS969838MPN: E51ALS5UPC/EAN: 782113353951

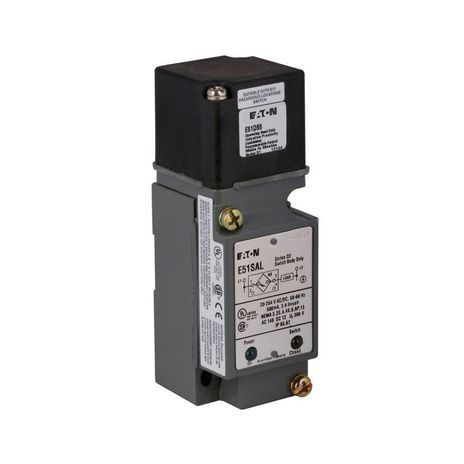

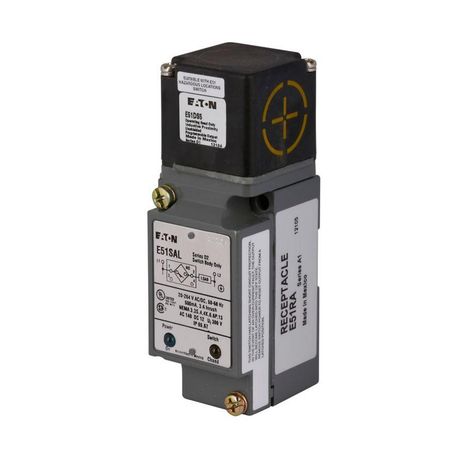

Eaton E51 NEMA limit switch inductive proximity sensor

Eaton E51ALC1P3, E51ALP1, E51ALP120, E51ALP1P3, E51ALP2, E51ALP2P3, E51ALS1, E51ALS120, E51ALS16P, E51ALS16P12, E51ALS16P30, E51ALS16PC, E51ALS16PU, E51ALS16PU12, E51ALS1P3

Product Details

Eaton E51 NEMA limit switch inductive proximity sensor, Inductive Modular Proximity Sensor, E51, Right Angle, Unshielded, Output ON (1 LED per output), Screw Terminals, 500 mA AC/DC solid state output, NO or NC, 20-264 Vac/dc

Attributes

Actuator Function	Unshielded
Connection	Screw terminal
Contact Configuration	NO/NC
Contact Rating	500 mA AC/DC solid state output
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
Input Voltage	20-264 Vac/dc
Led Indicator	Output ON (1 LED per output)
Maximum Ac Current	500 mA
Maximum Dc Current	500 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Latching short circuit
Series	E51
Type	Inductive Modular Proximity Sensor
