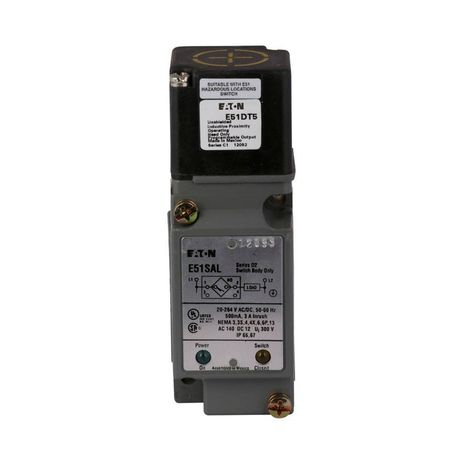

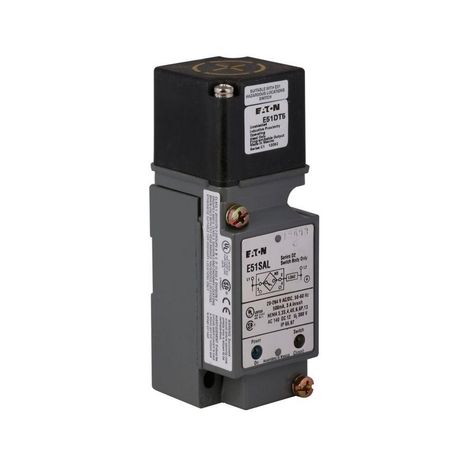

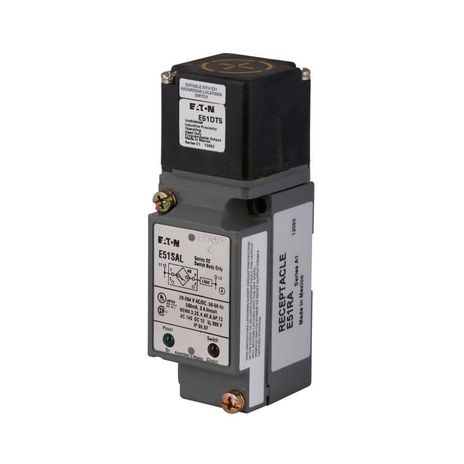

Eaton E51ALT5
SKU: CS2413830MPN: E51ALT5UPC/EAN: 782113351780
Eaton E51 NEMA limit switch inductive proximity sensor
Contact us for pricing and availability
Product Details
Eaton E51 NEMA limit switch inductive proximity sensor, Inductive Modular Proximity Sensor, E51, 0.94 in range, Top Sensing, Unshielded, Output ON (1 LED per output), Screw Terminals, 500 mA AC/DC solid state output, Standard frequency
Attributes
| Actuator Function | Unshielded |
| Connection | Screw terminal |
| Contact Configuration | NO/NC |
| Contact Rating | 500 mA AC/DC solid state output |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67 |
| Frequency Rating | Standard |
| Input Voltage | 20-264 Vac/dc |
| Led Indicator | Output ON (1 LED per output) |
| Maximum Ac Current | 500 mA |
| Maximum Dc Current | 500 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Latching short circuit |
| Series | E51 |
| Type | Inductive Modular Proximity Sensor |
Specifications
| SKU | CS2413830 |
|---|---|
| MPN | E51ALT5 |
| UPC/EAN | 782113351780 |
