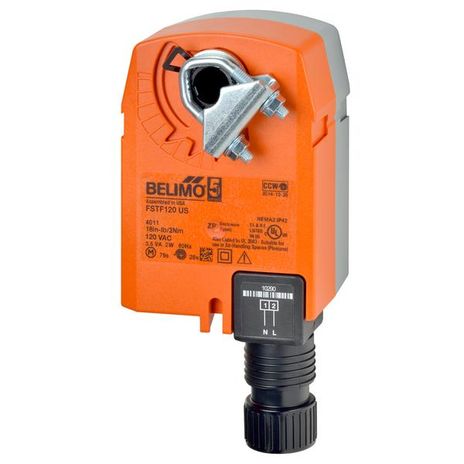

Belimo FSTF120 US

Name: Belimo FSTF120 US
Brand: Belimo

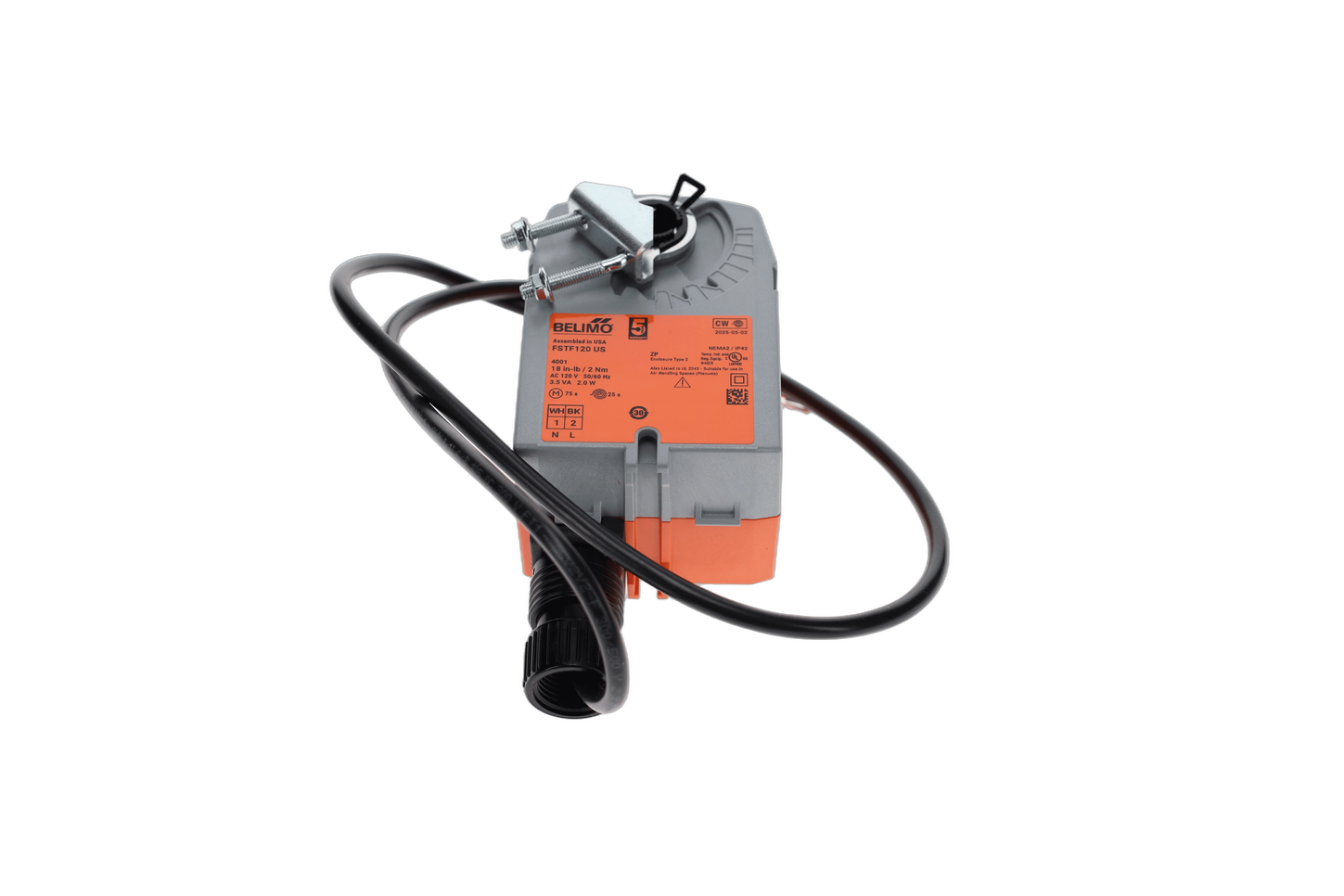

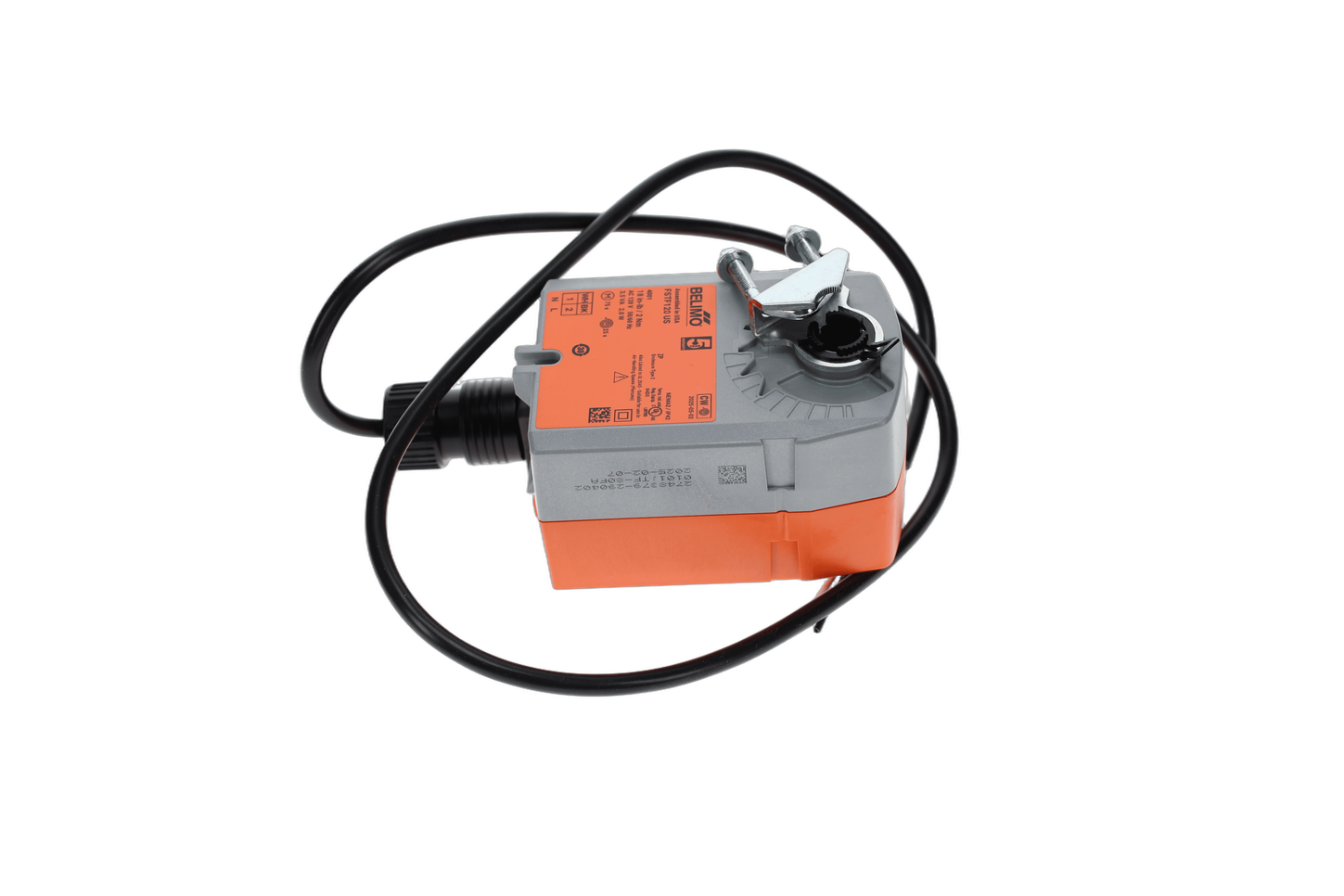

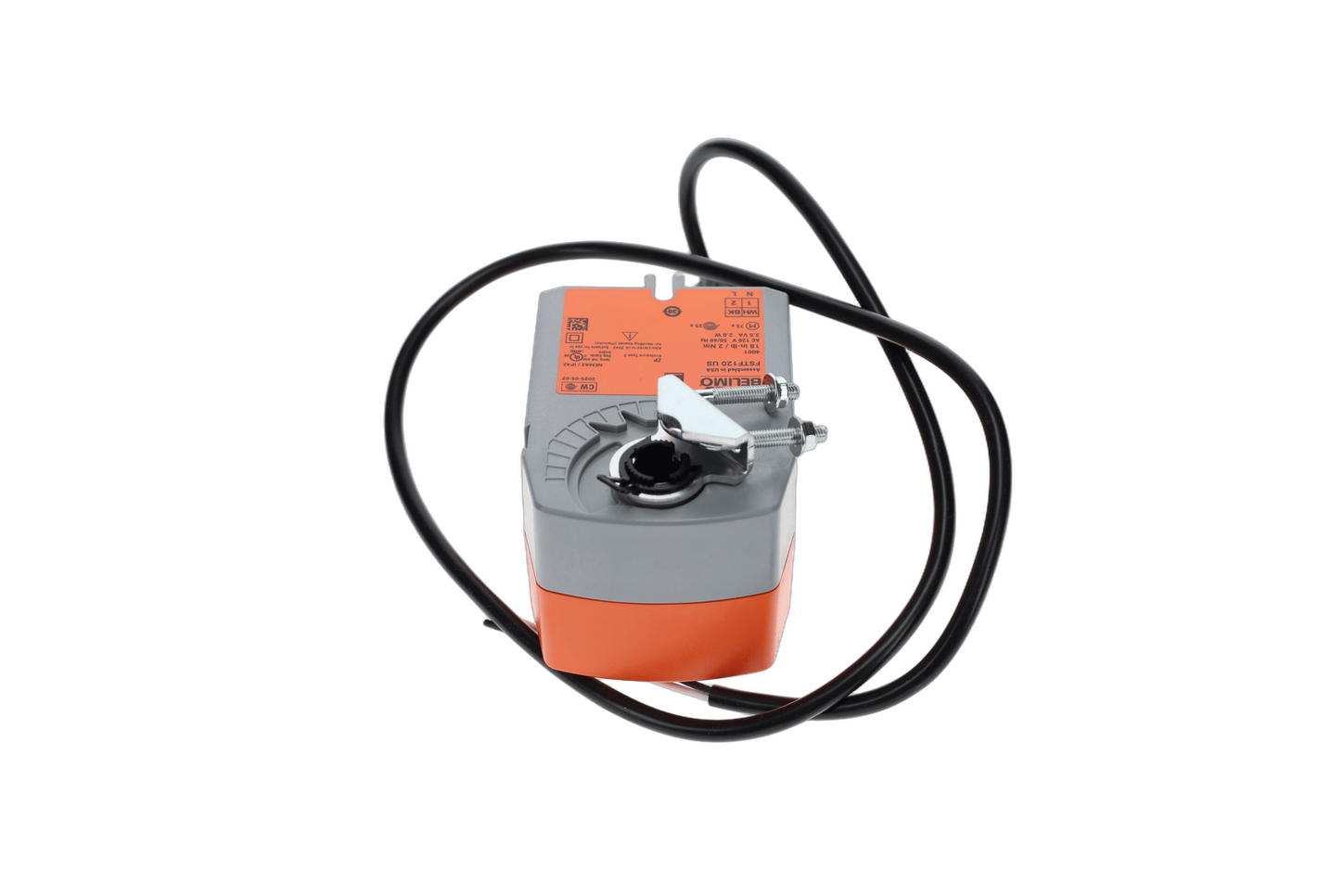

SKU: CS3349122
Price: 272.57 USD
Availability: InStock

SKU: CS3349122MPN: FSTF120 US

Fire \& Smoke Actuator, 18 in-lb [2 Nm], Spring return, AC 120 V, On/Off

$272.57

Unit

7 in stock

Quantity

remove

add

Documents

Fire \& Smoke Actuator, 18 in-lb [2 Nm], Spring return, AC 120 V, On/Off

Control	On/Off
Fail-Safe	Spring Return
Torque	18 in-lb
Nominal Voltage	AC 120 V
Enclosure	UL Enclosure Type 2
Power Supply	120 VAC, ±10%, 50/60 Hz
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s @ 250°F [121°C]
Running Time Fail-Safe	<25 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	32…122°F [0…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP42
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Ac	120 V
Noise Level, Motor	45 dB(A)
Torque Motor	18 in-lb [2 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC. California State Fire Marshal Listing 3210-1593:104
Shaft Diameter	¼…½” round, centers on ½”
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
