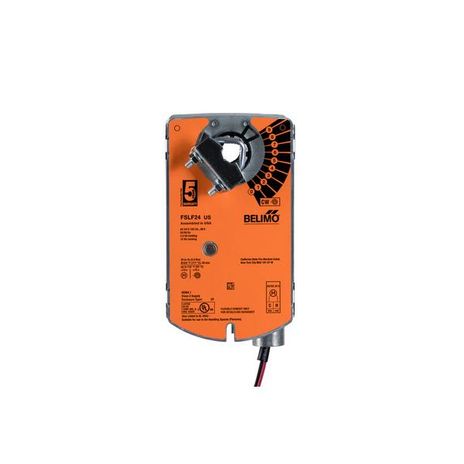

Belimo FSLF24 US

Name: Belimo FSLF24 US
Brand: Belimo
SKU: CS279021
Price: 409.93 USD
Availability: OutOfStock

SKU: CS279021MPN: FSLF24 US

Fire \& Smoke Actuator, 30 in-lb [3.5 Nm] from 32...350°F [0...177°C], Spring return, AC/DC 24 V, On/Off

$409.93

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo FSLF24 US, FSLF24.1 US Data Sheet

Product Details

Fire \& Smoke Actuator, 30 in-lb [3.5 Nm] from 32...350°F [0...177°C], Spring return, AC/DC 24 V, On/Off

Attributes

Control	On/Off
Fail-Safe	Spring Return
Torque	30 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	24 VA (class 2 power source)
Enclosure	UL Enclosure Type 1
Power Supply	24 VAC, ±10%, 50/60 Hz, 24 VDC, 0% / +50%
Electrical Connection	18 GA, 3 ft [1 m], 2 color coded wires
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	15 s at rated voltage and torque 32…122°F [0…50°C]
Running Time Fail-Safe	<15 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	32…122°F [0…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP30
Degree Of Protection Nema/Ul	NEMA 1
Connection	cable
Servicing	maintenance-free
Housing Material	galvanized steel
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Torque Motor	30 in-lb [3.5 Nm] from 32…350°F [0…177°C]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC. NYC Department of Buildings MEA 197-07-M California State Fire Marshal Listing 3210-1593:102
Shaft Diameter	⅜…½” round, centers on ½”
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
