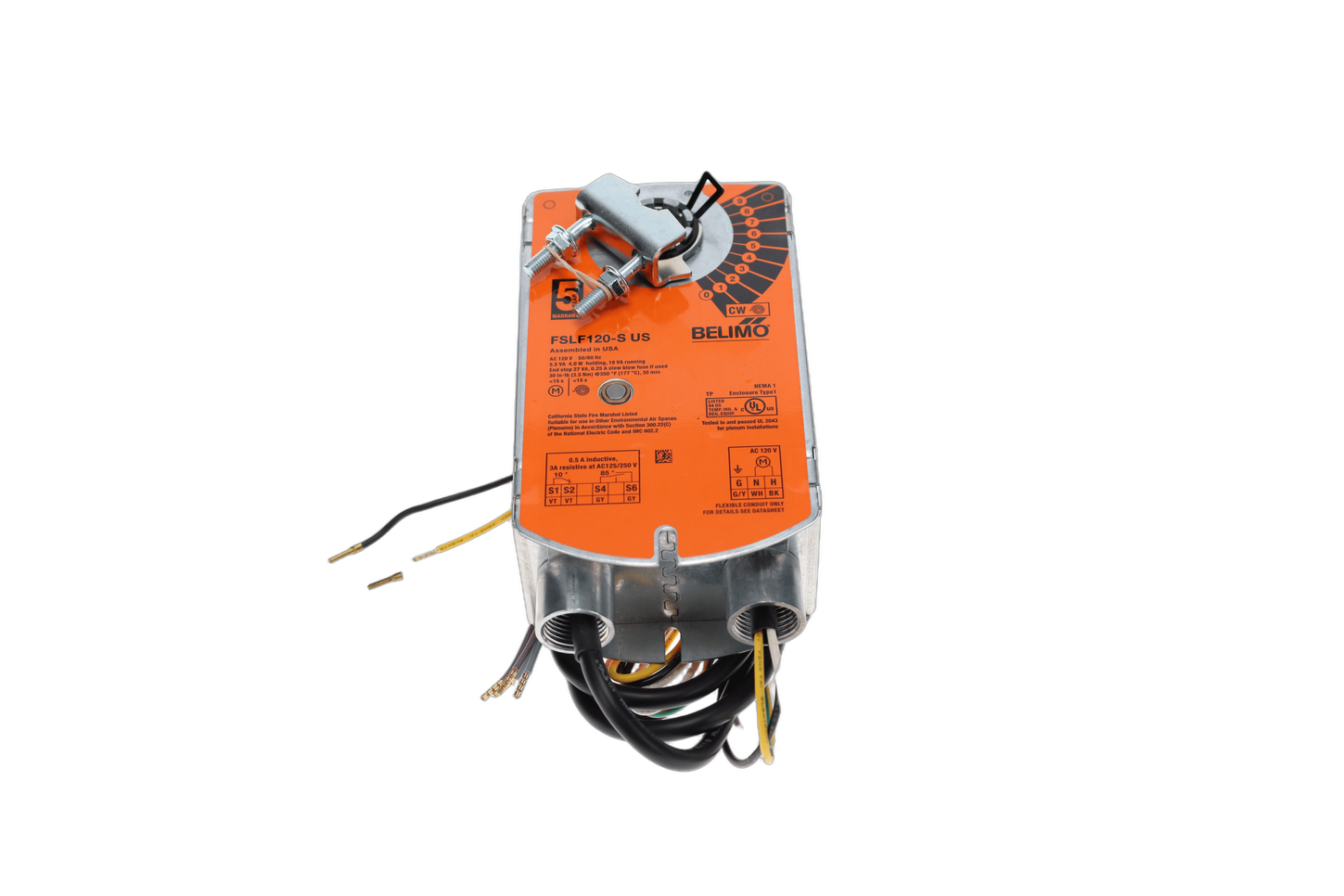

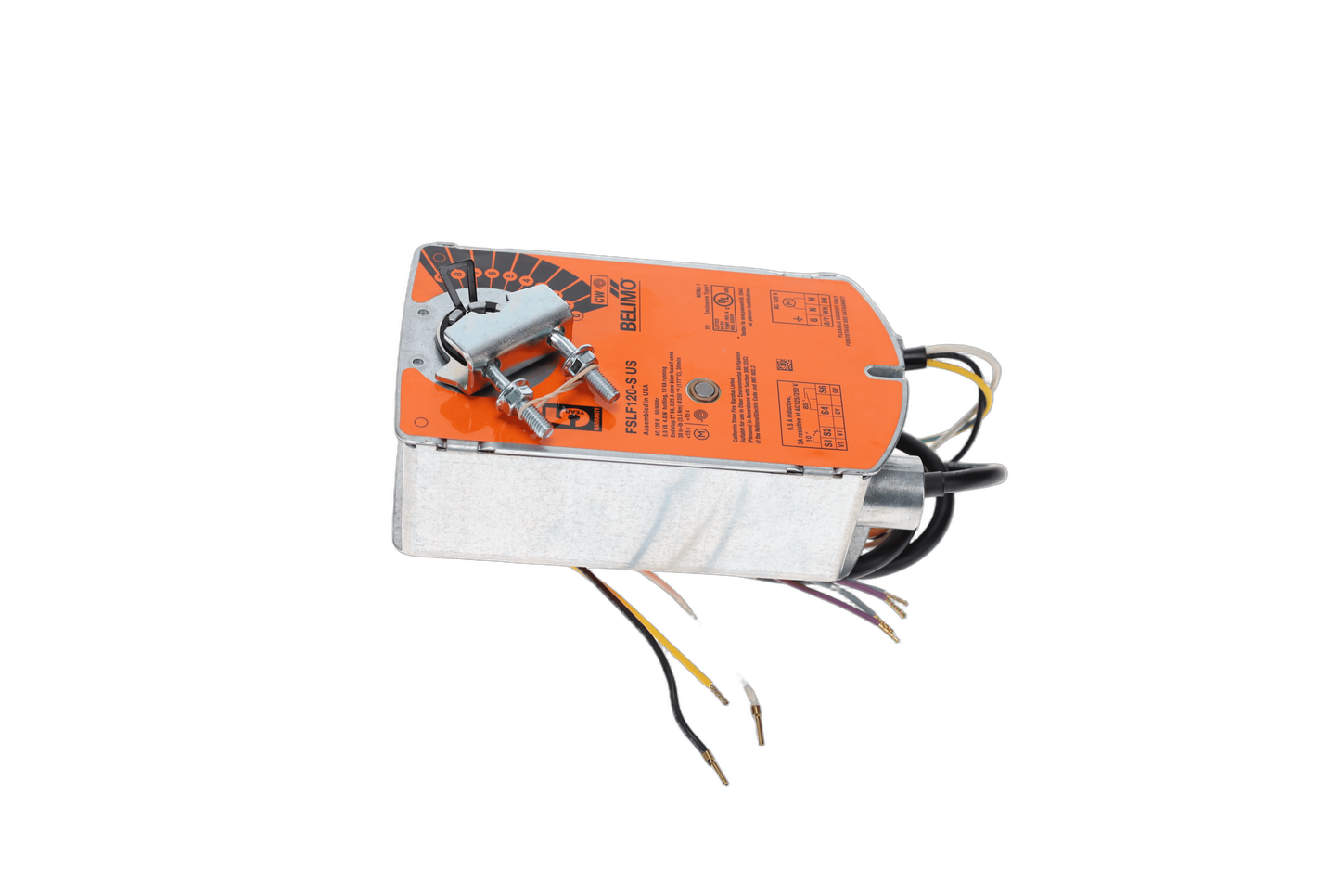

Belimo FSLF120-S US

Name: Belimo FSLF120-S US
Brand: Belimo
SKU: CS214990
Price: 529.10 USD
Availability: InStock

SKU: CS214990MPN: FSLF120-S US

Fire \& Smoke Actuator, 30 in-lb [3.5 Nm] from 32...350°F [0...177°C], Spring return, AC 120 V, On/Off, 2 x SPST

$529.10

Unit

8 in stock

Quantity

remove

add

Documents

Belimo FSLF120-S US, FSLF120-S.1 US Data Sheet

Product Details

Fire \& Smoke Actuator, 30 in-lb [3.5 Nm] from 32...350°F [0...177°C], Spring return, AC 120 V, On/Off, 2 x SPST

Attributes

Control	On/Off
Auxillary Switch	2 x SPST
Fail-Safe	Spring Return
Torque	30 in-lb
Nominal Voltage	AC 120 V
Enclosure	UL Enclosure Type 1
Power Supply	120 VAC, ±10%, 50/60 Hz
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	Max. 95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	default 15 s, at rated voltage and torque 32…122°F [0…50°C]
Running Time Fail-Safe	<15 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	32…122°F [0…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP30
Degree Of Protection Nema/Ul	NEMA 1
Connection	cable
Servicing	maintenance-free
Housing Material	galvanized steel
Nominal Voltage Ac	120 V
Noise Level, Motor	45 dB(A)
Torque Motor	30 in-lb [3.5 Nm] from 32…350°F [0…177°C]
Electrical Protection	grounded enclosure, 120 V
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC. NYC Department of Buildings MEA 197-07-M California State Fire Marshal Listing 3210-1593:102
Shaft Diameter	⅜…½” round, centers on ½”
Auxiliary Switch	2 x SPST, 3 A resistive (0.5 A inductive) @ AC 250 V, one set at 10°, one set at 85°
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
