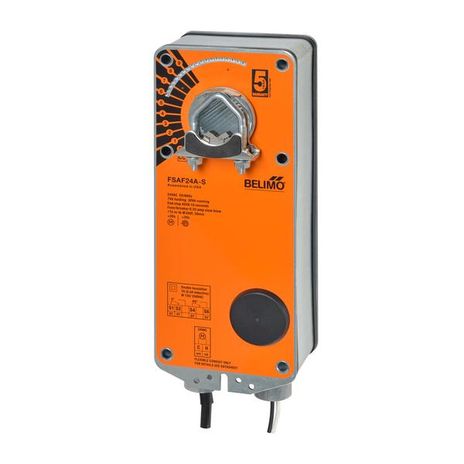

Belimo FSAF24A-S

Name: Belimo FSAF24A-S
Brand: Belimo
SKU: CS3175509
Price: 638.30 USD
Availability: InStock

SKU: CS3175509MPN: FSAF24A-S

Fire \& Smoke Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPST

$638.30

Unit

1 Unit Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Documents

Belimo FSAF24A-S, FSAF24A-S.1 Data Sheet

Product Details

Fire \& Smoke Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPST

Attributes

Control	On/Off
Auxillary Switch	2 x SPST
Fail-Safe	Spring Return
Torque	180 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	40 VA (class 2 power source)
Enclosure	UL Enclosure Type 1
Power Supply	AC 24 V, ±10%, 50/60 Hz, DC 24 V, 0% / +50%
Electrical Connection	18 GA appliance cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	25 s
Running Time Fail-Safe	<15 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	32…122°F [0…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP40
Degree Of Protection Nema/Ul	NEMA 1
Connection	cable
Servicing	maintenance-free
Housing Material	galvanized steel
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	70 dB(A)
Torque Motor	180 in-lb [20 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001, RoHS (EU-Directive 2011/65/EU)
Noise Level, Fail-Safe	73 dB(A)
Agency Listing	cULus listed to UL60730-1A:02; UL 60730-2-14:02 and CAN/CSA-E60730-1:02; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	½…1.05” round, centers on ¾” with insert, 1.05” without insert
Auxiliary Switch	2 x SPST, 6 A resistive (2.5 A inductive) @ AC 250 V, one set at 5°, one set at 85°
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
