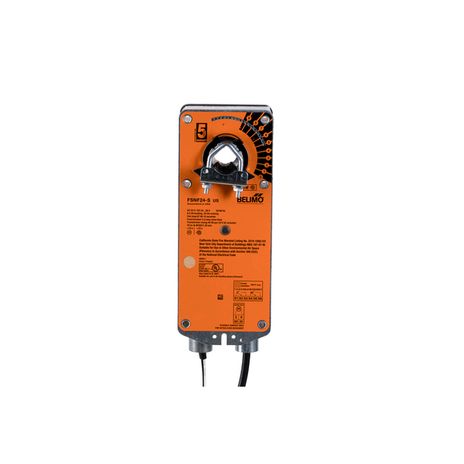

Belimo FSNF24-S US

Name: Belimo FSNF24-S US
Brand: Belimo
SKU: CS315621
Price: 577.20 USD
Availability: OutOfStock

SKU: CS315621MPN: FSNF24-S US

Fire \& Smoke Actuator, 70 in-lb [8 Nm] from 32...350°F [0...177°C], Spring return, AC/DC 24 V, On/Off, 2 x SPDT

$577.20

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo FSNF24-S US, FSNF24-S.1 US Data Sheet

Product Details

Fire \& Smoke Actuator, 70 in-lb [8 Nm] from 32...350°F [0...177°C], Spring return, AC/DC 24 V, On/Off, 2 x SPDT

Attributes

Control	On/Off
Auxillary Switch	2 x SPDT
Fail-Safe	Spring Return
Torque	70 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	40 VA (class 2 power source)
Enclosure	UL Enclosure Type 1
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, 0% / +50%
Electrical Connection	18 GA, 3 ft [1 m], 2 color coded wires
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	15 s between 32…350°F [0…177°C], <15 s at rated voltage & torque
Running Time Fail-Safe	15 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	32…122°F [0…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP40
Degree Of Protection Nema/Ul	NEMA 1
Connection	cable
Servicing	maintenance-free
Housing Material	galvanized steel
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Torque Motor	70 in-lb [8 Nm] from 32…350°F [0…177°C]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus listed to UL873 and CAN/CSA C22.2 No.24, UL 2043 Listed for air plenum installation per NEC 300.22 and IMC Section 602 NYC Department of Buildings MEA 197-07-M.California State Fire Marshal Listing 3210-1593:101.
Shaft Diameter	½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Auxiliary Switch	2 x SPDT, 7 A resistive (2.5 A inductive) @ AC 250 V, one set at 10°, one set at 85°
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
