Belimo FSAFB24-SR-S

Name: Belimo FSAFB24-SR-S
Brand: Belimo
SKU: CS3170541
Price: 775.67 USD
Availability: InStock

SKU: CS3170541MPN: FSAFB24-SR-S

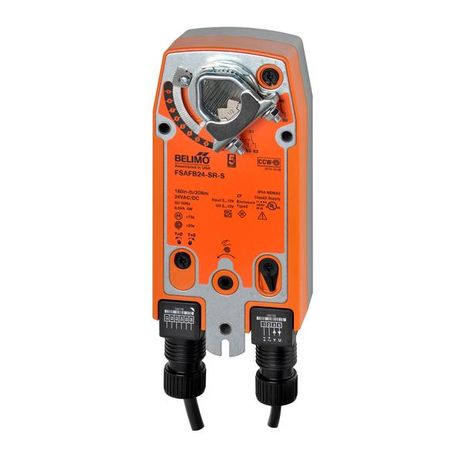

Fire \& Smoke Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, modulating

$775.67

Unit

5 in stock

Quantity

remove

add

Documents

Belimo FSAFB24-SR-S Data Sheet

Product Details

Fire \& Smoke Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, 2...10 V, 2 x SPDT, modulating

Attributes

Control	modulating
Auxillary Switch	2 x SPDT
Fail-Safe	Spring Return
Torque	180 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	10 VA (class 2 power source AC 24 V only)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation	6.5 W
Electrical Connection	(2) 18 GA appliance cables with ½” conduit connectors, 3 ft [1 m],
Overload Protection	electronic throughout 0…95° rotation
Operating Range	2…10 V, 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor)
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA
Position Feedback	2…10 V, Max. 0.5 mA
Angle Of Rotation	95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	Galvanized steel and plastic housing
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	40 dB(A)
Torque Motor	180 in-lb [20 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	CE, UL 60730-1, CSA C22.2 No. 139 certified Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Shaft Diameter	½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Auxiliary Switch	2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, one set at 10°, one adjustable 10…90°
Fail-Safe Function	Spring return
Control Type Web	DC 2…10 V
Fail-Safe	YES
