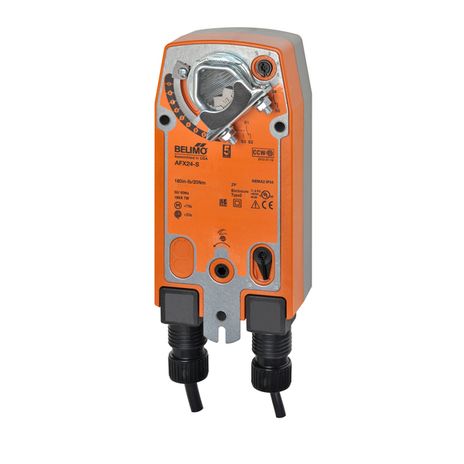

Belimo AFX24-S

Name: Belimo AFX24-S
Brand: Belimo
SKU: CS4062343
Price: 468.00 USD
Availability: OutOfStock

SKU: CS4062343MPN: AFX24-S

Configurable, Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT

$468.00

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo AFX24-S Data Sheet
Belimo AF-P, AFB24, AFB24-IP, AFB24-MFT, AFB24-MFT95, AFB24-PC, AFB24-S, AFB24-SR, AFBUP, AFBUP-S, AFX24, AFX24-MFT, AFX24-MFT-S, AFX24-MFT95, AFX24-S Installation Instructions

Product Details

Configurable Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT

Attributes

Control	On/Off
Auxillary Switch	2 x SPDT
Fail-Safe	Spring Return
Torque	180 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	7.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation	5 W
Power Consumption In Rest Position	2.5 W
Electrical Connection	(2) 18 GA appliance cables with or without ½” conduit connectors, 3 ft [1 m], 10 ft [3 m] or 16ft [5 m]
Overload Protection	electronic throughout 0…95° rotation
Angle Of Rotation	95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor	selectable by ccw/cw mounting
Position Indication	Mechanical
Running Time (Motor)	75 s
Running Time Fail-Safe	<20 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	Galvanized steel and plastic housing
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	50 dB(A)
Torque Motor	180 in-lb [20 Nm]
Electrical Protection	actuators are double insulated
Quality Standard	ISO 9001
Noise Level, Fail-Safe	62 dB(A)
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	½…1.05” round, centers on ½” and ¾” with insert, 1.05” without insert
Auxiliary Switch	2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, one set at 10°, one adjustable 10…90°
Fail-Safe Function	Spring return
Control Type Web	On/Off
Fail-Safe	YES
