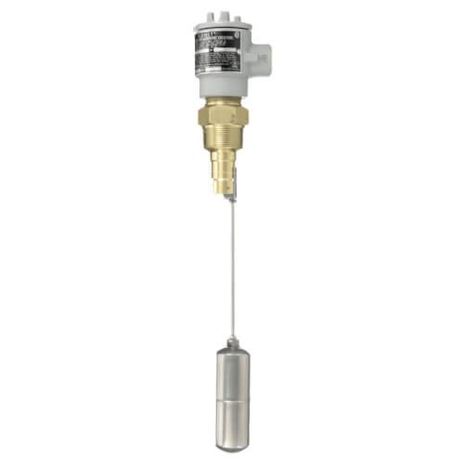

Dwyer L4

Name: Dwyer L4
Brand: Dwyer
SKU: CS112348
Price: 813.13 USD
Availability: OutOfStock

SKU: CS112348MPN: L4Alternate Part #: 119105-01

L4 FLOTECT LEVEL SW

$813.13

Unit

Available on backorder

Quantity

remove

add

Product Details

Float switch, brass body, 316SS float, side wall mounting.

Attributes

Commodity Code	8200
Compliance	ATEX, CE, CSA, FM, IECEx, UL**.
Conduit Connection	¾” (19.05 mm) female NPT standard or M25 with -BSPT option.
Deadband	¾” (19 mm) for standard float.
Electrical Connection	UL and CSA models: 16 AWG, 6” (152 mm) long. ATEX and IECEx units: terminal block.
Electrical Rating	UL, FM, ATEX and IECEx models: 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC. MV option: 1 A @ 125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC. MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx]
Enclosure Rating	Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX CE 2813 II 2 G Ex db IIB T6 Gb -20°C_x0089_¤Tamb_x0089_¤73°C. -20°C_x0089_¤Process Temp_x0089_¤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013. IECEx Certified: For Ex db IIB T6 Gb -20°C_x0089_¤Tamb_x0089_¤73°C. -20°C_x0089_¤Process Temp_x0089_¤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071. IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014.
Mounting Orientation	Horizontal installation standard, optional vertical top mount.
Pressure Limit	Brass body 1000 psig (69 bar), 316 SS body 2000 psig (138 bar). Standard float rated 100 psig (6.9 bar). For other floats, see options.
Process Connection	1-½” (38.10 mm) male NPT or 1-½” (38.10 mm) male BSPT standard, 2-½” (63.50 mm) male NPT or 2-½” (63.50 mm) male BSPT standard optional floats.
Service	Liquids compatible with wetted materials.
Specific Gravity	0.7 minimum with standard float. For other floats see Options/Accessories page.
Switch Type	SPDT snap switch standard, DPDT snap switch optional.
Wetted Material	Float and Rod: 316 SS; Body: Brass or 316 SS standard; Magnet Keeper: 430 SS standard, 316 SS or nickel optional.
