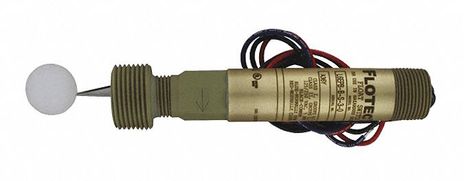

Dwyer L6EPB-B-S-3-A

Name: Dwyer L6EPB-B-S-3-A
Brand: Dwyer
SKU: CS839509
Price: 424.86 USD
Availability: InStock

SKU: CS839509MPN: L6EPB-B-S-3-AAlternate Part #: 119025-00

L6EPB-BS3A FLOTECT LEVEL SW

$424.86

Unit

1 Unit Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Product Details

Liquid level switch, 304 SS cylindrical float, side wall mounting, max. pressure 200 psig (13.8 bar), min. S.G. 0.5.

Attributes

Commodity Code	8201
Compliance	ATEX, CE, CSA, IECEx, KTL, UL.
Conduit Connection	¾” (19.05 mm) male NPT standard, ¾” (19.05) female NPT or M25 with BSPT option on junction box models.
Electrical Connection	UL models: 18 AWG, 18” (457.20 mm) long. ATEX/CSA/IECEx models: terminal block.
Electrical Rating	UL models 5 A @ 125/250 VAC (V~). CSA, ATEX, and IECEx models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V~). MV option: .1 A @ 125 VAC (V~). MT option: 5 A @ 125/250 VAC (V~). [MT option not UL, CSA, ATEX, or IECEx].
Enclosure Rating	Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C and D; Class II, Groups E, F, and G. (Group A on SS body models only.) ATEX CE 0344 EX II 2 G EEx d IIC T6 Process Temp x0089¤ 75°C. EC-Type Certificate No: KEMA 04ATEX2128. ATEX Standards: EN 60079-0: 2009; EN60079-1: 2007. IECEx Certified: For Ex d IIC T6 Gb Process Temp = 75°C. IECEx Certificate of Conformity: IECEx DEK II.0039. IECEx Standards: IEC 60079-00: 2007; IEC 60079-1: 2007. Korean Certified (KC) for Ex d IIC T6 Gb Process Temp=75°C. KTL Certificate Number: 2012-2454-75.
Mounting Orientation	Horizontal with index arrow pointing down.
Pressure Limit	See model chart on Catalog Page.
Process Connection	1” (25.40 mm) male NPT or 1” (25.40 mm) male BSPT on models without external float chamber, 1” (25.40 mm) female NPT or 1” (25.40 mm) female BSPT on models with external float chamber.
Service	Liquids compatible with wetted materials.
Specific Gravity	See chart on Catalog page.
Switch Type	SPDT snap switch standard, DPDT snap switch optional.
Upper Body	Brass or 303 SS.
Wetted Material	Float: Solid polypropylene or 304 SS; Lower Body: Brass or 303 SS; Magnet: Ceramic; External Float Chamber (Tee): Matches lower body choice of brass or 303 SS; Other: Lever Arm, Spring, Pin, etc.: 301 SS.
