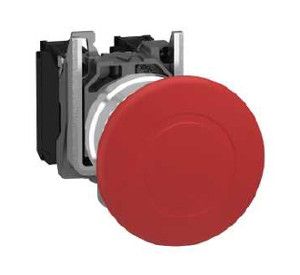

Square D XB4BT842

Name: Square D XB4BT842
Brand: Square D
SKU: CS3082015
Price: 80.30 USD
Availability: OutOfStock

SKU: CS3082015MPN: XB4BT842

Emergency stop push button, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger latching push pull, 1NC

$80.30

Unit

Available on backorder

Quantity

remove

add

Product Details

PUSHBUTTON OPERATOR 22MM XB4B +OPTIONS

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Mechanical Durability	3000000 cycles
Mounting Diameter	22 mm
Product Certifications	DNV# #GL# #LROS (Lloyds register of shipping)# #CSA# #UL listed# #BV
Product Or Component Type	emergency stop push-button# #emergency switching off push-button
Protective Treatment	TH
Range Of Product	Harmony XB4
Reset	push-pull
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Standards	EN/IEC 60947-5-1# #EN/IEC 60204-1# #EN/IEC 60947-5-4# #JIS C8201-5-1# #UL 508# #IEC 60364-5-53# #EN/ISO 13850# #EN/IEC 60947-1# #EN/IEC 60947-5-5# #CSA C22.2 No 14# #JIS C8201-1
Terminals Description Iso N 1	(21-22)NC
