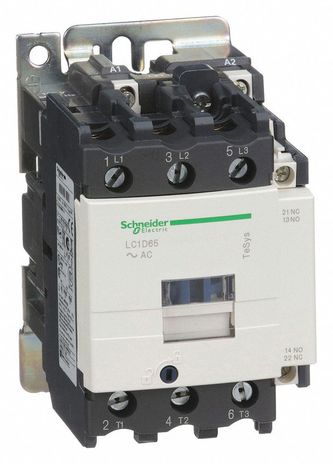

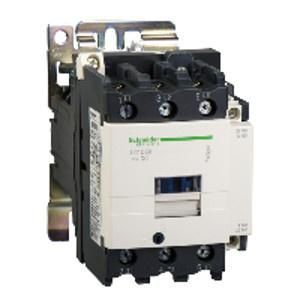

Square D LC1D65G7
SKU: CS3080975MPN: LC1D65G7
Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/\<\=440V 65A,120V AC 50/60Hz coil, screw clamp terminals
$614.20
UnitAvailable on backorder
Product Details
TeSys D Contactor- Number of Poles: 3-Poles- Pole Contact Composition: 3 NO- Rated Operational Current: 65A- Control Circuit Voltage: 120V AC 50/60 Hz- Non-Reversing
Attributes
| Ambient Air Temperature For Operation | -5-60 °C |
| Ambient Air Temperature For Operation 1 | -5-60 °C |
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Coil Technology | without built-in bidirectional peak limiting diode suppressor |
| Contactor Application | motor control# #resistive load |
| Device Short Name | LC1D |
| Mechanical Durability | 6000000 cycles |
| Mounting Support | rail# #plate |
| Overvoltage Category | III |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Product Certifications | CCC# #UL# #BV# #CSA# #LROS (pending)# #GOST# #RINA# #GL# #DNV |
| Product Or Component Type | contactor |
| Protective Cover | with |
| Range | TeSys |
| Range Of Product | TeSys D |
| Standards | EN 60947-5-1# #CSA C22.2 No 14# #EN 60947-4-1# #UL 508# #IEC 60947-4-1# #IEC 60947-5-1 |
| Terminals Description Iso N 1 | (A1-A2)CO# #(13-14)NO# #(21-22)NC |
| Utilisation Category | AC-1# #AC-2# #AC-4# #AC-3 |
Specifications
| SKU | CS3080975 |
|---|---|
| MPN | LC1D65G7 |
