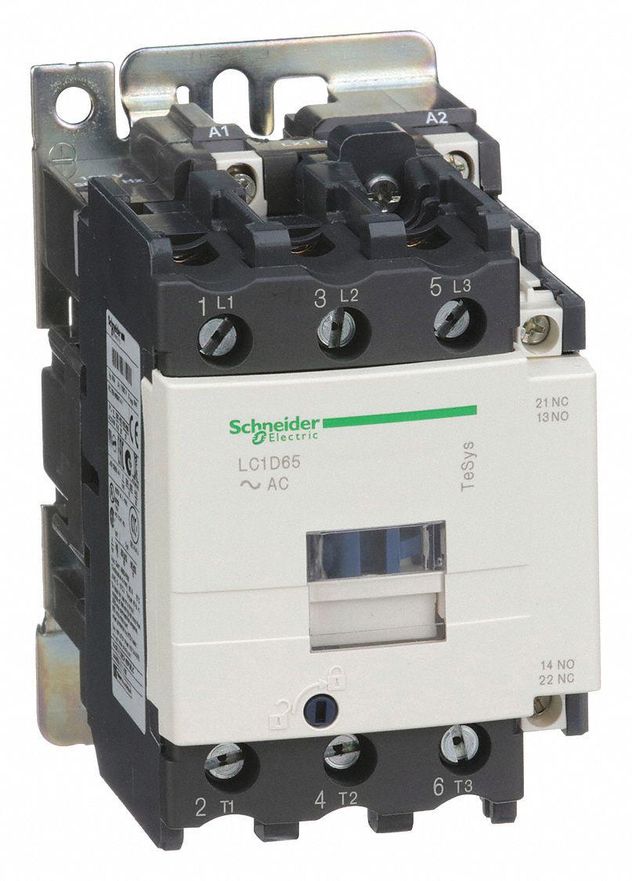

Square D LC1D65M7
SKU: CS1649021MPN: LC1D65M7
Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/\<\=440V 65A,220V AC 50/60Hz coil, screw clamp terminals
$638.65
UnitAvailable on backorder
Product Details
TeSys D Contactor- Number of Poles: 3-Poles- Pole Contact Composition: 3 NO- Rated Operational Current: 65A- Control Circuit Voltage: 220V AC 50/60 Hz- Non-Reversing
Attributes
| Ambient Air Temperature For Storage | -60-80 °C |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Coil Technology | without built-in bidirectional peak limiting diode suppressor |
| Contactor Application | resistive load# #motor control |
| Device Short Name | LC1D |
| Mechanical Durability | 6000000 cycles |
| Mounting Support | rail# #plate |
| Overvoltage Category | III |
| Pole Contact Composition | 3 NO |
| Poles Description | 3P |
| Product Certifications | RINA# #DNV# #LROS (Lloyds register of shipping)# #CCC# #CSA# #BV# #UL# #GL# #GOST# #UKCA |
| Product Or Component Type | contactor |
| Protective Cover | with |
| Range | TeSys |
| Range Of Product | TeSys D# #TeSys Deca |
| Standards | IEC 60947-5-1# #CSA C22.2 No 14# #EN 60947-4-1# #EN 60947-5-1# #UL 508# #IEC 60947-4-1 |
| Terminals Description Iso N 1 | (13-14)NO# #(21-22)NC# #(A1-A2)CO |
| Utilisation Category | AC-3# #AC-1# #AC-2# #AC-4# #AC-3e |
Specifications
| SKU | CS1649021 |
|---|---|
| MPN | LC1D65M7 |
