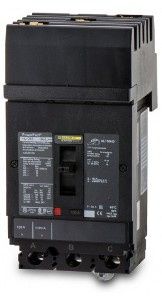

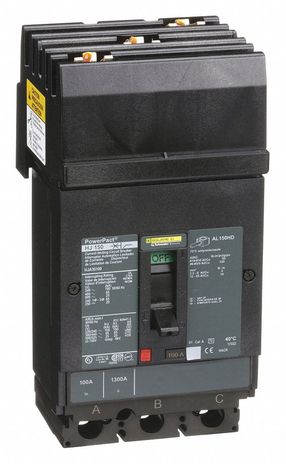

Square D HJA36100

Circuit breaker, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC

Square D Molded Case Circuit Breaker

HJA36100 is a 3 pole 100 ampere thermal magnetic molded case circuit breaker, with maximum voltage rating of 240/415 vac at 50/60hz, built in trip setting of 900 to 1700 ampere, comes with 5 phase connections, application mainly used for power distribution, used on class 612 i-line panelboard/switchboard.

Specifications:

• Manufacturer : Square D
• Cat. No. : HJA36100
• Alternate Part No. : HJA-36100
• Product Type : Molded Case Circuit Breaker
• 240/480/600 Vac At 50/60 Hz, 480 Vac Star/277 Vac At 50/60 Hz, 600 Vac Star/347 Vac At 50/60 Hz (Ul/Csa/Nom)
• 240/415 Vac At 50/60 Hz (Iec)
• Amperage : 100-Ampere
• No. Of Poles : 3-Pole
• Interrupting Rating 100
• Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac, 25 Ampere At 600 Vac Star/347 Vac Or 600 Vac (Ul/Csa/Nom)
• 100 Kiloampere At 240 Vac, 65 Kiloampere At 415 Vac (Iec)
• Trip Setting 900 To 1700 Ampere
• Application Power Distribution
• Used On Class 612 I-Line[R] Panelboard/Switchboard
• Approval Ul, Csa
• Hj Model
• Frame Type H
• Size 4.12 Inch W X 4.36 Inch D X 6.4 Inch H
• Tripping Method Thermal Magnetic
• Terminal Wire Size 14 To 3/0 Awg (Aluminum/Copper)
• Authentic Square D Product
