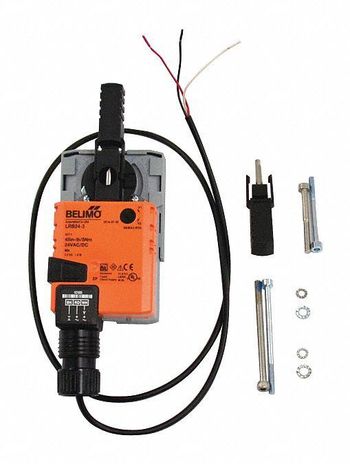

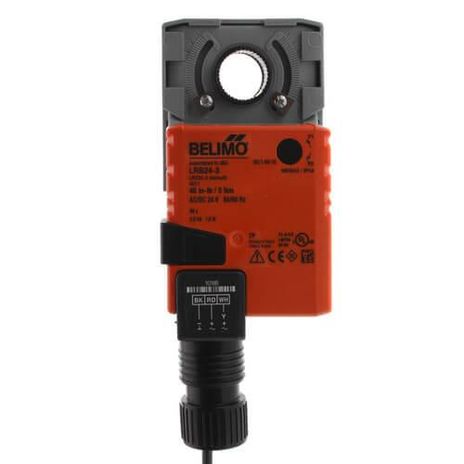

Belimo LRB24-3

Name: Belimo LRB24-3
Brand: Belimo
SKU: CS110903
Price: 158.17 USD
Availability: InStock

SKU: CS110903MPN: LRB24-3

Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

$158.17

Unit

89 in stock

Quantity

remove

add

Documents

Non-Spring Return, On/Off/Floating Point Control Actuator.

For use with 2-way Characterized Control Valves (½”-1-¼”) and 3-way Characterized Control Valves (½”-1”)

Control	On/Off Floating point
Fail-Safe	Non-Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	2.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	1.5 W
Power Consumption In Rest Position	0.2 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic thoughout 0…90° rotation
Input Impedance	600 Ω
Angle Of Rotation	90°
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, pluggable
Running Time (Motor)	90 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	35 dB(A)
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Fail-Safe Function	Non fail-safe
Control Type Web	Floating/3-point
Fail-Safe	NO
