Square D XCKP2110P16

Name: Square D XCKP2110P16
Brand: Square D
SKU: CS3653928
Availability: OutOfStock

SKU: CS3653928MPN: XCKP2110P16Alternate Part #: SQD-XCKP2110P16

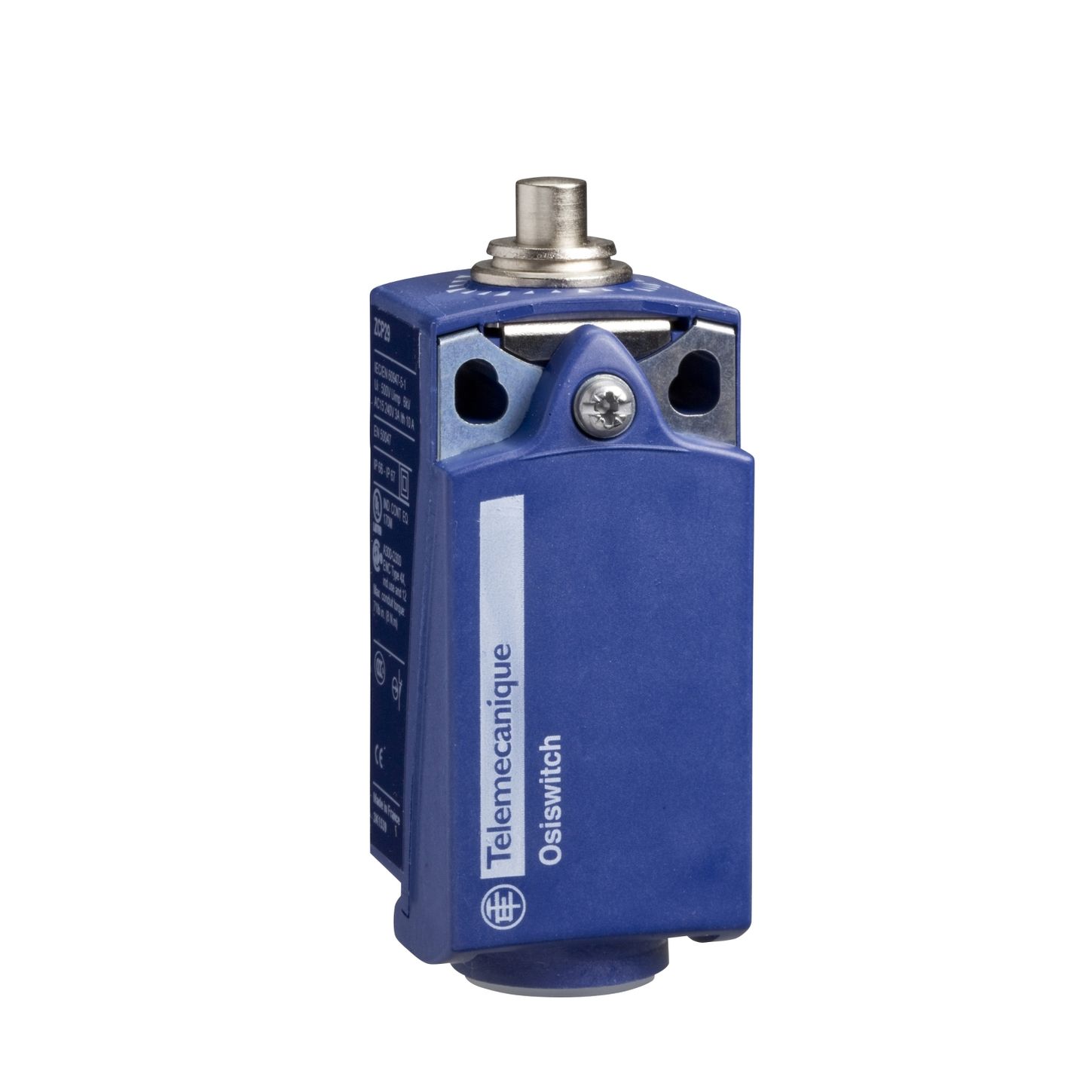

Limit switch, Limit switches XC Standard, XCKP, metal end plunger, 1NC+1 NO, snap, M16

Product Details

Limit switch XCKP, Metal end plunger, 1NC+1NO, Snap, M16

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Body Material	plastic
Body Type	fixed
Contact Operation	snap action
Contacts Insulation Form	Zb
Contacts Type And Composition	1 NC + 1 NO
Device Short Name	XCKP
Fixing Mode	by the body
Head Material	zamak
Head Type	plunger head
Material	plastic
Mechanical Durability	15000000 cycles
Minimum Actuation Speed	0.01 m/min
Minimum Force For Tripping	15 N
Movement Of Operating Head	linear
Number Of Poles	2.0
Positive Opening	with
Positive Opening Minimum Force	45 N
Product Certifications	CCC# #CSA# #UL
Product Or Component Type	limit switch
Protective Treatment	TC
Range Of Product	Telemecanique Limit switches XC Standard
Series Name	standard format
Standards	EN 60947-5-1# #IEC 60204-1# #IEC 60947-5-1# #CSA C22.2 No 14# #UL 508# #EN 60204-1
Switch Actuation	on end
Terminals Description Iso N 1	(13-14)NO# #(21-22)NC
