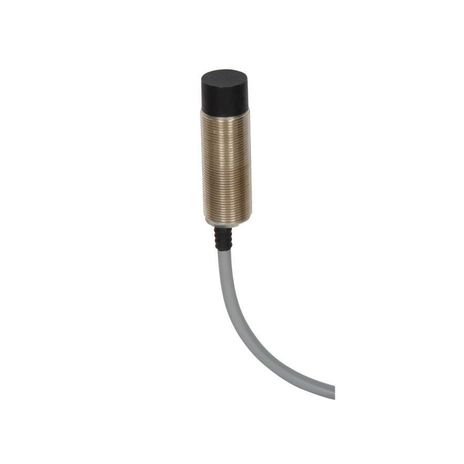

Eaton E57-18GE16-D

Name: Eaton E57-18GE16-D
Brand: Eaton
SKU: CS2767119
Price: 217.94 USD
Availability: OutOfStock

SKU: CS2767119MPN: E57-18GE16-DUPC/EAN: 782116072651

Eaton E57 inductive proximity sensor

Eaton E57-18GE16-A1AB, E57-18GE16-AAB, E57-18GE16-D, E57-18GE16-D1, E57-18GE16-D1DB, E57-18GE16-D1S5, E57-18GE16-DDB

Product Details

E57 Two-Wire Series Tubular Inductive Proximity Sensor Enclosure, 0.71 dia, dist. 16 mm, 2-Wire DC, NO, 100 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, \<2% accuracy, Short circuit protected, Un-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 2%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	2-wire DC, NO
Contact Rating	100 mA at 30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	100 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
