Eaton E57-18GU08-D1

Name: Eaton E57-18GU08-D1
Brand: Eaton
SKU: CS4872713
Price: 165.35 USD
Availability: OutOfStock

SKU: CS4872713MPN: E57-18GU08-D1UPC/EAN: 782116071876

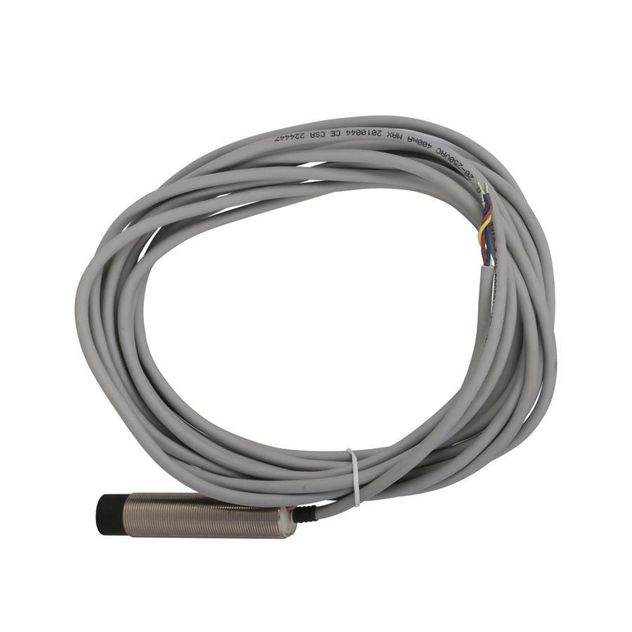

Eaton E57 inductive proximity sensor

Eaton E57-18GU08-D, E57-18GU08-D1, E57-18GU08-D1DB, E57-18GU08-D3, E57-18GU08-D5, E57-18GU08-DDB, E57-18GU08-G

Product Details

Eaton E57 Two-Wire Series Tubular Inductive Proximity Sensor Enclosure, 0.71 dia, dist. 8 mm, 2-Wire DC, NC, 100 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, \<2% accuracy, Short circuit protected, Un-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 2%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	2-wire DC, NC
Contact Rating	100 mA at 30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	100 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
