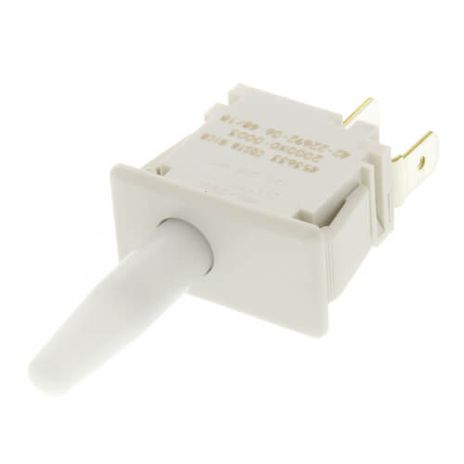

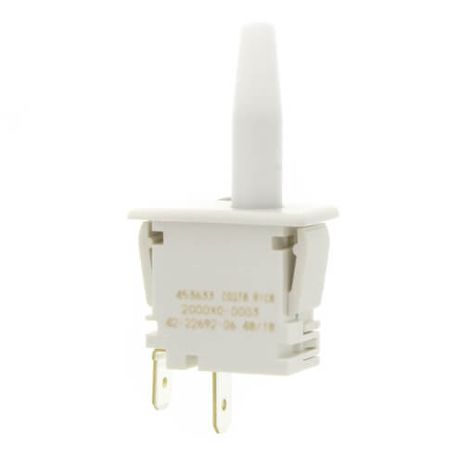

Rheem 42-22692-06

Door Switch

Specifications:

• Actuation: Push Button
• Type: SPST - NO
• Approximate Mounting Hole Width (in.): 9/16
• Approximate Mounting Hole Height (in.): 1-⅛
• Approximate Reset Position Length (From Face) (in.): 1-¼
• Approximate Operating Position Length (From Face) (in.): 1-5/32 - 1-¼
• Approximate Overtravel Position Length (From Face) (in.): 17/32
• Voltage Rating (VAC): 120 / 230
• Current Rating (A): 13.8 / 13.8
• Electrical Connection Type: ¼ in. Quick Connects
