All ProductsACI

ACI A/FLS-06-A

SKU: CS4754915MPN: A/FLS-06-AAlternate Part #: 145354

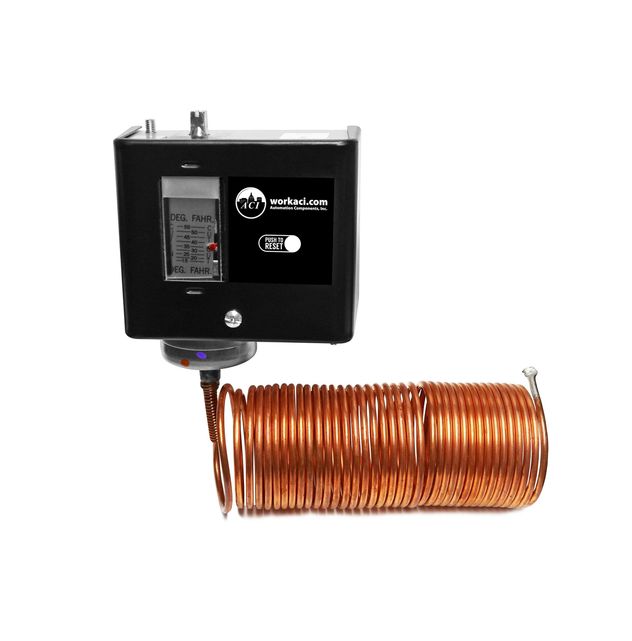

Freeze Stat (FLS), 6’ Capillary, Automatic Reset, 4 Wires, 2 Circuits (Two Simultaneously Switching Contacts)

ACI A/FLS-06-A
ACI A/FLS-06-A
ACI A/FLS-06-A
ACI A/FLS-06-A
Contact us for pricing and availability

Product Details

Freeze Stat (FLS), 6’ Capillary, Automatic Reset, 4 Wires, 2 Circuits (Two Simultaneously Switching Contacts)

Product Configuration

Length 6’
Reset Style Automatic

Product Family Specifications

Contact Form 4 Wires, 2 Circuits (Two simultaneously switching contacts (Circuits))
Contact Type Line to M2 (Main): Open on Temperature Drop Line to M1 (Auxiliary/Alarm): Close on Temperature Drop
Reset Options Model Dependent: Manual or Automatic
Sensing Media Temperature in air
Product Weight A/FLS-20-x: 2.31 lbs. (1.046 kg)
Enclosure Color Black | Baked Enamel
Sensing Element Vapor Pressure
Thermostat Type Self-contained, electromechanical
Agency Approvals UL File # SA516 UL 873 | CSA File # LR948 C22.2 No. 24-199 | C-Tick # ACN 002 968 103 RoHS Compliant
Enclosure Rating NEMA 1 (IP10)
Sensing Response To lowest temperature sensed along any 14 to 16” (35.6 to 40.6 cm) length of sensing element
Conduit Knockouts ½” conduit knockout
Enclosure Material Steel, galvanized
Operating RH Range 0 to 95% RH, non-condensing

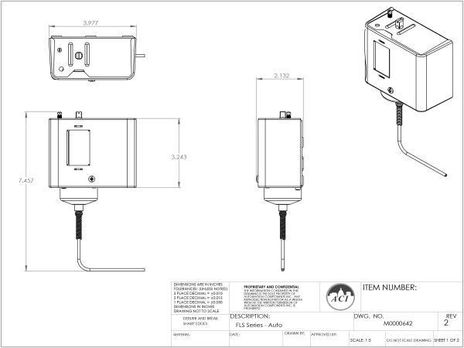

Product Dimensions A/FLS06-x, A/FLS-10-x, A/FLS-20-x: 8.125” (20.64 cm) x 6.375” (16.19 cm) x 2.625” (6.67 cm) A/FLS-50-x: 10.125” (25.72 cm) x 3.375” (16.19 cm) x 5.500” (13.97 cm)
Wiring Connections Screw Terminals; Copper wire only rated to 90ºC (194ºF) minimum
Sensing Capillary Length Model Dependent: 6’ (1.83m), 10’ (3.05m), 20’ (6.10m), 50’ (15.24m)
Storage Temperature Range -40 to 158°F (-40 to 70°C)
Sensing Capillary Diameter 0.125” (3.18 mm)
Sensing Capillary Material Copper
Adjustable Trip Point Range 15°F to 55°F (-9°C to 13°C); Factory set with Stop at 35°F(1.7°C)
Operating Temperature Range 0 to 140°F (-18 to 60°C)
Approximate Switching Differential Auto Reset only: Approximately 5°F (2.8°C), Non-adjustable
Sensing Capillary Overload Temperature 400°F (204.4°C) maximum

Specifications

SKUCS4754915
MPNA/FLS-06-A
Alternate Part #145354
