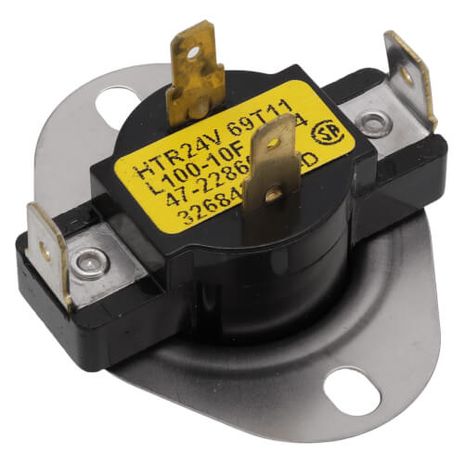

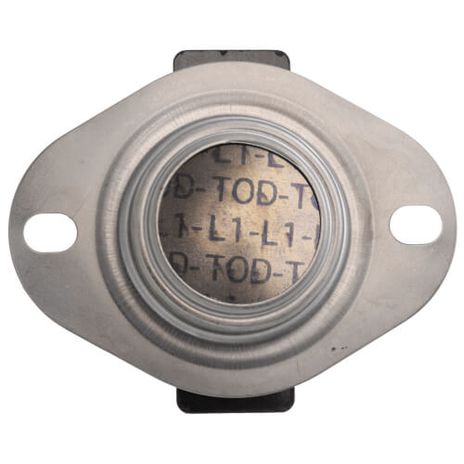

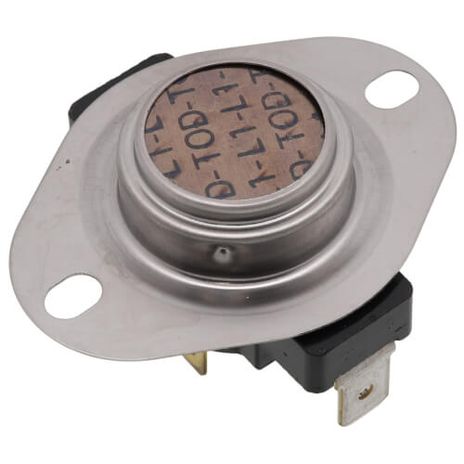

Rheem 47-22860-05

SPST N/C A/R Limit (100 Open 90 Close)

SPST N/C Auto Reset Limit (100 Open 90 Close) Specifications:

• TOD Switch Series: 36T
• Category: General Purpose
• Reset Mode: Manual
• No. of Poles: 1
• Switch Type: SPST (Single Pole Single Throw)
• Contact Orientation: Normally Closed
• Maximum Voltage Rating (VAC): 120 / 230
• Maximum Current Rating (A): 15 / 10
• Open Temperature (F): 130
• Tolerance Open Temperature (F): +/-8
• Close Temperature (F): 45
• Minimum Manual Reset Temperature (F): 85
• Disc Face: Enclosed
• Mounting: Flanged Airstream
• Mounting Insertion Depth - Maximum (in.): ⅜
• Connections: ¼ Inch Quick Connects
