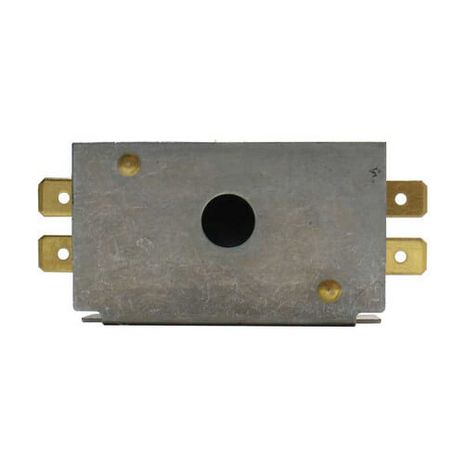

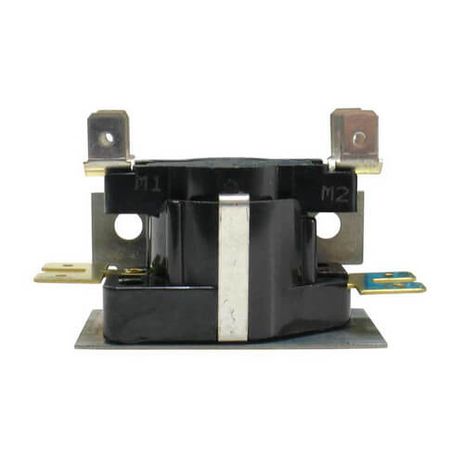

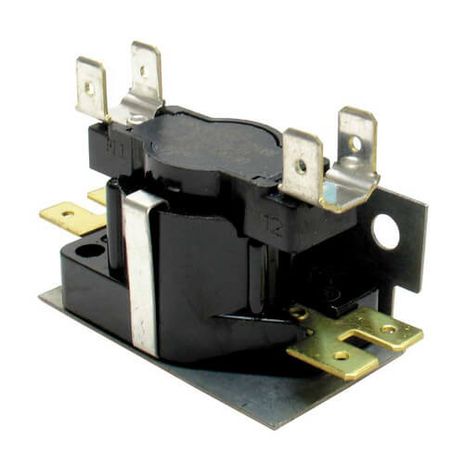

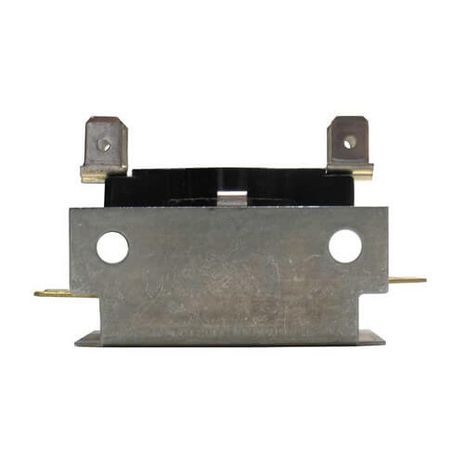

Rheem 42-23116-01

SPST N/O Sequencing Relay (24V)

SPST N/O Sequencing Relay (24V)

Features:

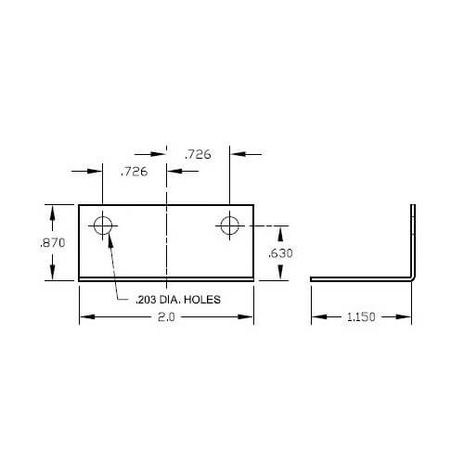

• Mounting: Angle Bracket w/Two Mounting Holes
• Heater Wattage/ Power Consumption: 24 VAC / 0.2A steady state / 0.9A maximum
• Heater Voltage (V): 24
• Contact Configuration: SPST - NO
• No. of Poles: 1
• On Timing - Pole 1 (seconds): 1-30
• Off Timing - Pole 1 (seconds): 40-90
• Connections: ¼ in. Quick Connects
• Motor FLA at 120V (A): Pole 1: 14
• Motor LRA at 120V (A): Pole 1: 72
• Pilot Duty Rating at 120V (VA): Pole 1: 125
• Resistive Rating at 120V (A): Pole 1: 25
• Motor FLA at 230V (A): Pole 1: 7
• Motor LRA at 230V (A): Pole 1: 42
• Pilot Duty Rating at 230V (VA): Pole 1: 125
• Resistive Rating at 230V (A): Pole 1: 25
• Motor FLA at 460V (A): Pole 1: 3
• Motor LRA at 460V (A): Pole 1: 18
• Pilot Duty Rating at 460V (VA): Pole 1: 125
• Resistive Rating at 460V (A): Pole 1: 12.5
