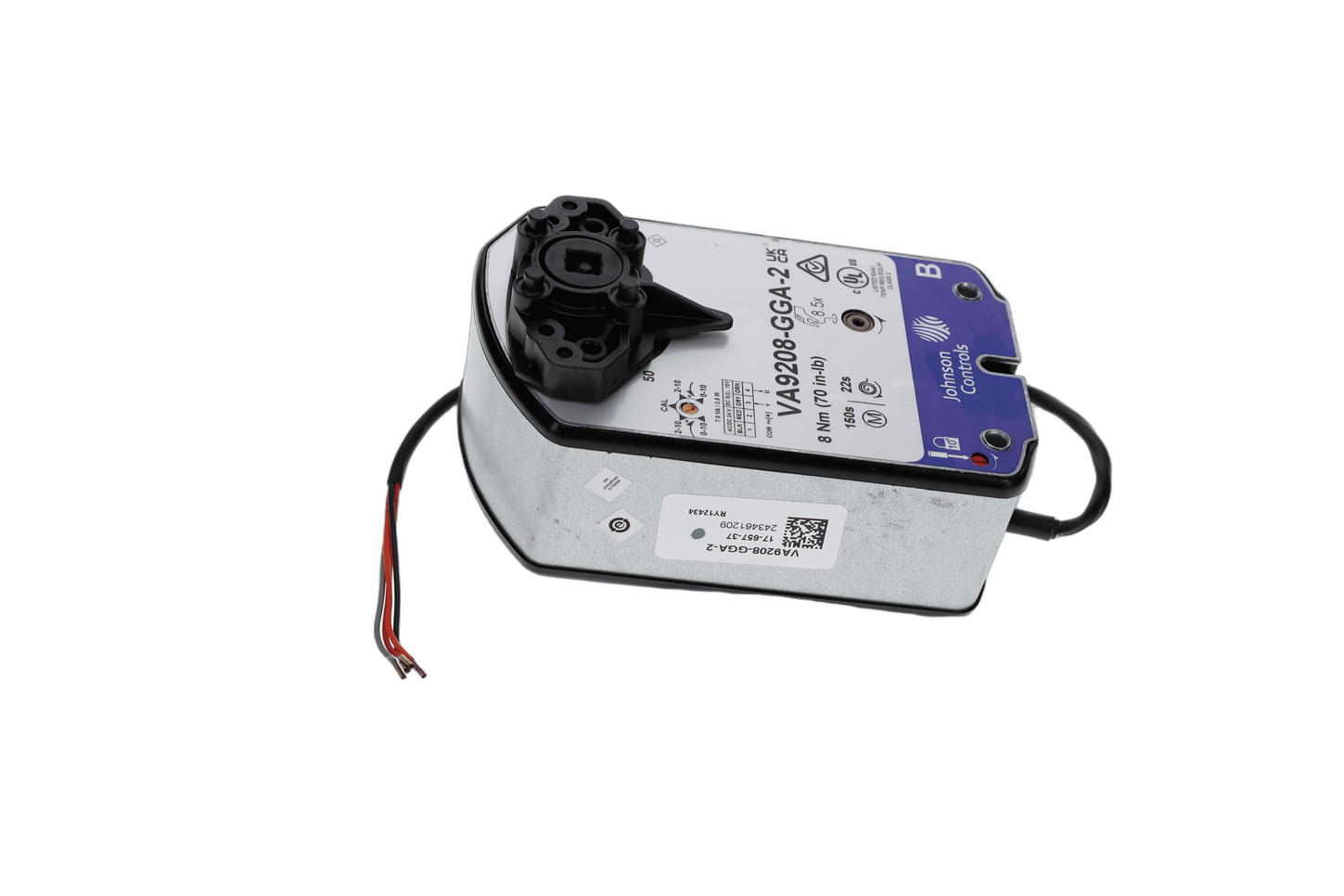

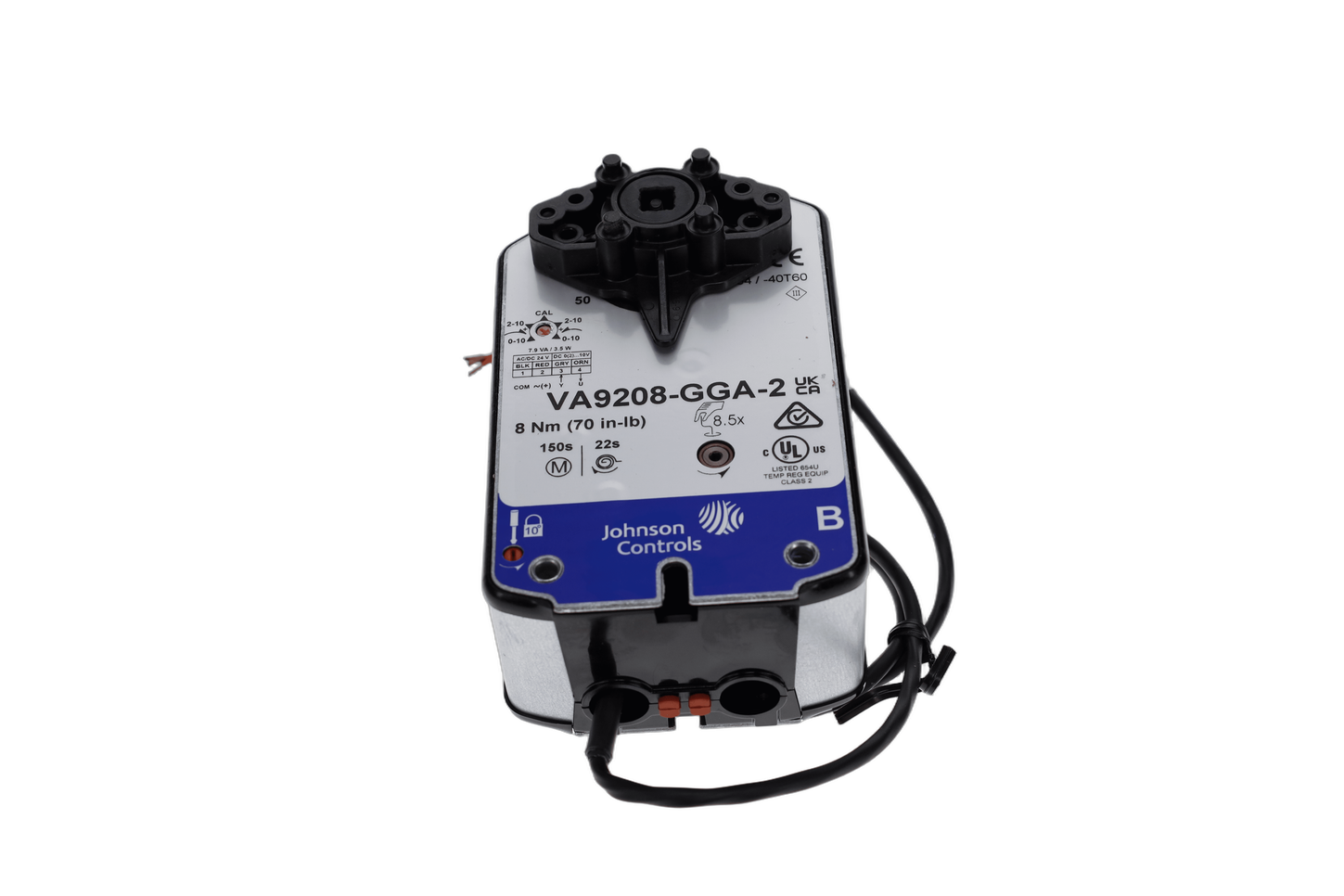

Johnson Controls VA9208-GGA-2

ROTARY ACTUATOR; 70 LB IN; (8N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR

Electric Ball Valve Actuator Voltage 24 Signal Type Proportional Torque 70 in-lb Cycle Time 150 sec Ambient Temp Range -40 Degrees to 140 Degrees F Type of Actuator Spring Return Stroke Deg 95 Height 3 13/32 in Width 3 29/32 in Depth 7 13/32 in Electrical Connections Cable Power Consumption 7.9 VA Enclosure Rating NEMA 2 Direct Mount Mounting For Use With JCI VG1000 Ball Valve Includes Factory Mounted Valve Linkage Standards C-Tick CE UL
