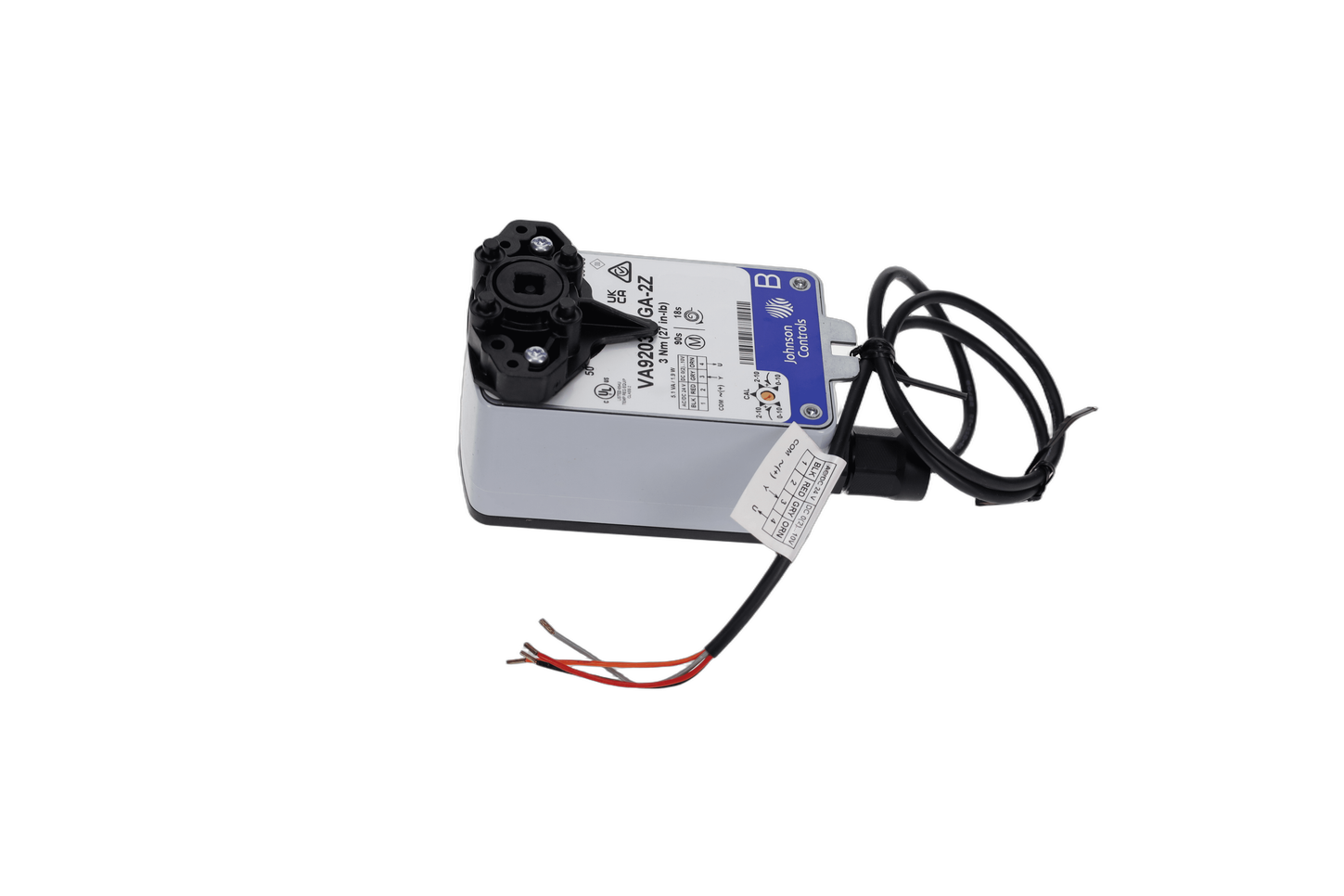

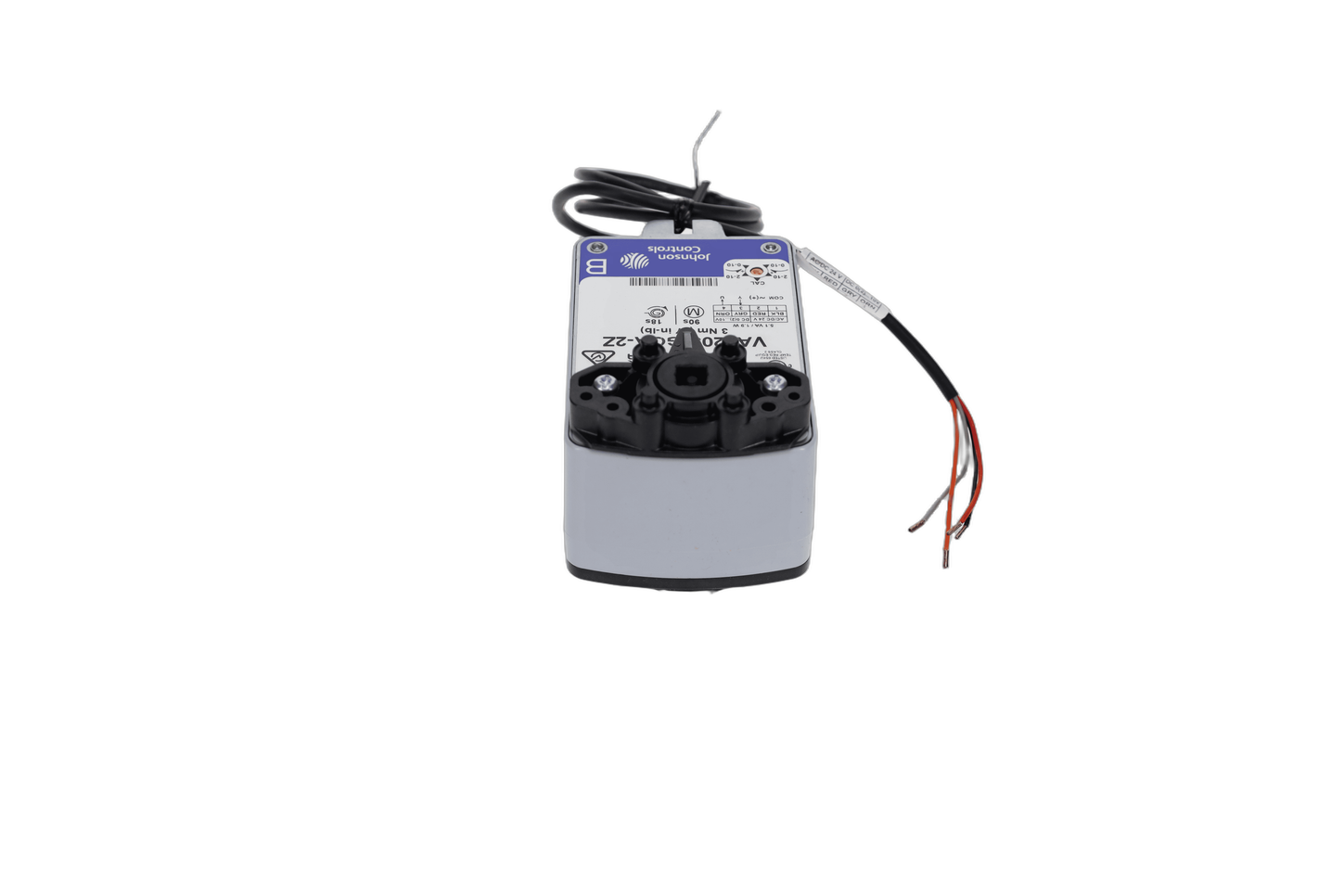

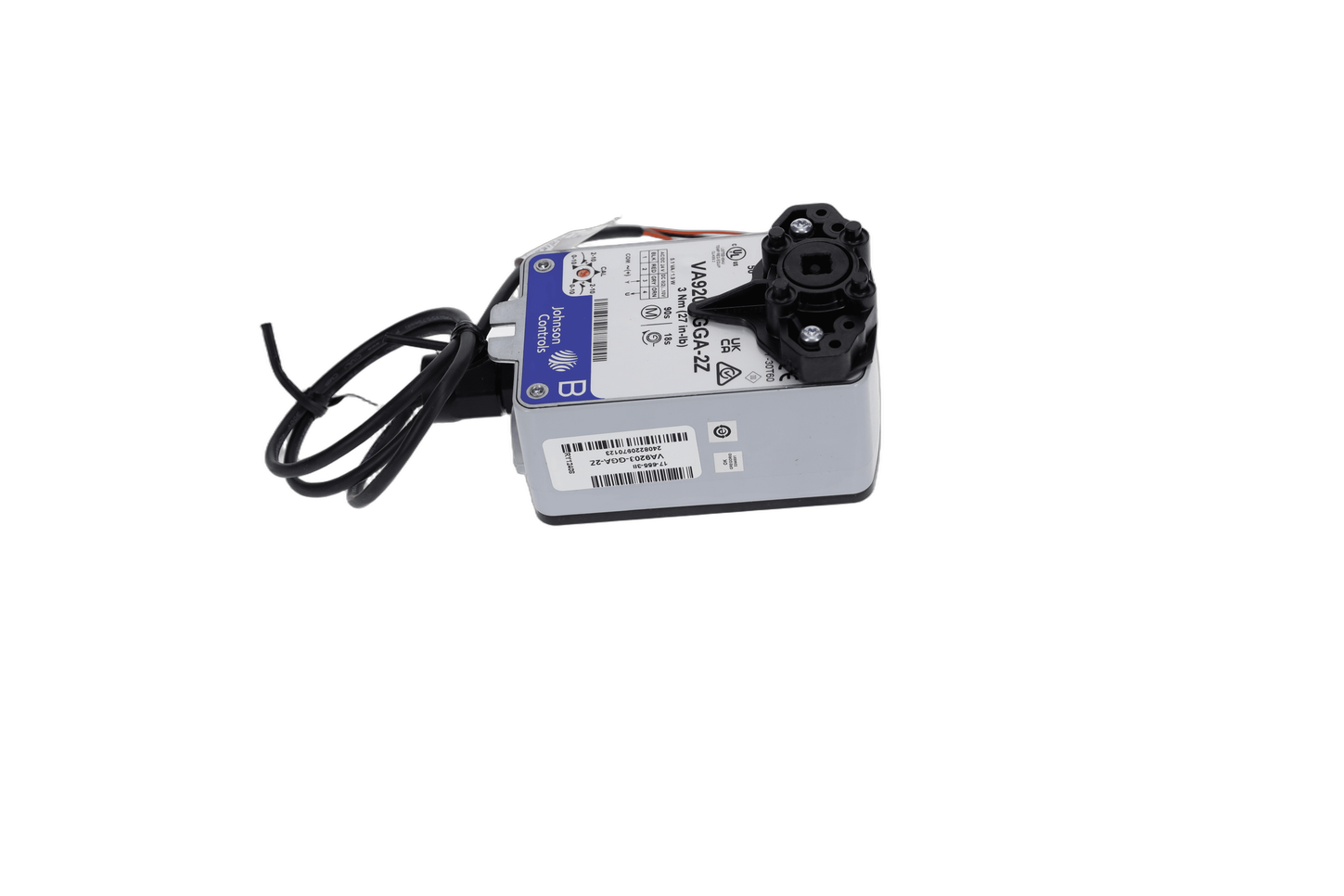

Johnson Controls VA9203-GGA-2Z

ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR

Electric Ball Valve Actuator Voltage 24V AC Signal Type Proportional Torque 27 in-lb Cycle Time 90 sec Ambient Temp Range To 140 Degrees F Type of Actuator Spring Return Stroke Deg 90 Height 6 ⅜ in Width 3 ¼ in Depth 2 ¾ in Electrical Connections Cable Power Consumption 5.1 VA For Use With VG 1000 Ball Valves Includes Valve Linkage
