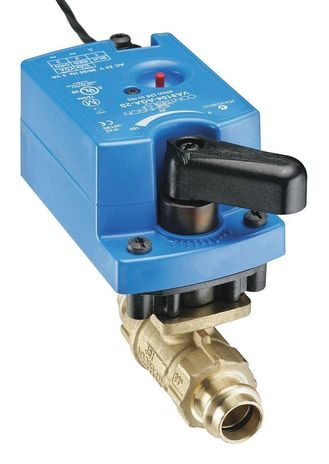

Johnson Controls VA9104-AGA-3S

ELECTRIC VALVE ACTUATOR; NSR; FLOATING CTL; NO SW; W/TERMINAL BLOCK

Electric Ball Valve Actuator Voltage 24 Signal Type Floating Torque 35 in-lb Cycle Time 60 sec Ambient Temp Range -4 Degrees to 140 Degrees F Type of Actuator Non-Spring Return Stroke Deg 93 Height 2 45/64 in Width 2 13/16 in Depth 5 ½ in Electrical Connections Screw Terminals Power Consumption 2.1 VA Enclosure Rating NEMA 2 Direct Mount Mounting For Use With JCI VG1000 Ball Valve Includes Factory Mounted Valve Linkage Standards C-Tick CE UL
