Process InstrumentationFlow MeasurementTurck

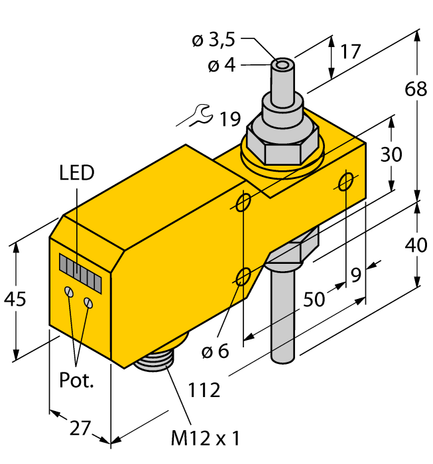

Turck FCI-TCD04A4P-LIX-H1141

SKU: CS2423846MPN: FCI-TCD04A4P-LIX-H1141Alternate Part #: 6870655UPC/EAN: 4047101174748

6870655 - CAL (INL), COMP-MON, GEN., GEN

Turck FCI-TCD04A4P-LIX-H1141
$1,029.03
Unit
Available on backorder
remove
add

Product Details

Flow Monitoring

Inline Sensor with Integrated Processor

  • Flow sensor for liquid media
  • Calorimetric principle
  • Adjustment via potentiometer
  • LED band
  • Operating range 1…200 ml/min
  • Mechanical Connection: Barrel, 4 mm
  • DC 3-wire, 21.6…26.4 VDC
  • 4…20 mA analog output
  • Connector device, M12 × 1

Attributes

Ambient Temperature 0…+60 °C
Approvals UL
Current Output 4…20 mA
Customs Tariff Number 90261021000.0000
Design Inline
Detection Type Calorimetric
Ecl Ss Code V5 1 4 27273190 -/- Flow meter (not classified)
Electrical Connection Connector, M12 × 1
Function Flow monitoring
Housing Material Plastic, PBT
Medium liquids
Medium Temperature 0…+60 °C
Operating Voltage 21.6…26.4 VDC
Output Function Analog output
Process Connection Barrel 4 mm
Protection Class IP67
Sensor Material Stainless steel

Specifications

SKUCS2423846
MPNFCI-TCD04A4P-LIX-H1141
Alternate Part #6870655
UPC/EAN4047101174748
