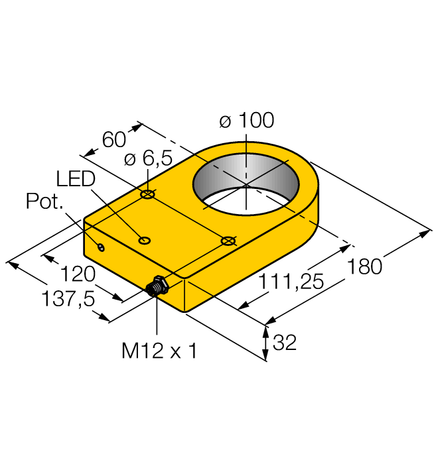

Turck NI100R-S32XL-VP44X-H1141

SKU: CS2421373MPN: NI100R-S32XL-VP44X-H1141Alternate Part #: 1510301UPC/EAN: 4047101070415
Turck NI100R-S32XL-VP44X-H1141
$1,983.38
Unit
Available on backorder
remove
add

Product Details

Inductive Sensor

Ring Sensor

  • Rectangular, height 32 mm
  • Plastic, POM
  • Integrated amplifier
  • Static output behavior
  • Sensitivity adjusted via potentiometer
  • Output pulse length min. 100 ms
  • Short-circuit proof and reverse-polarity protected
  • Wide temperature range
  • High resolution
  • High switching accuracy
  • High repeatability
  • DC 4-wire, 10…55 VDC
  • Changeover contact, PNP output
  • M12 x 1 male connector

Attributes

Ambient Temperature -25…+70 °C
Construction Size 180 x 137.5 x 32 mm, S32XL
Customs Tariff Number 85365080900.0000
Design Ring sensor
Ecl Ss Code V5 1 4 27270101 -/- Inductive proximity switch
Electrical Connection Connector, M12 × 1
Housing Material Plastic, POM
Inside Ring Diameter D 100 mm
Operating Voltage 10…55 VDC
Output Function Complementary contact, PNP
Protection Class IP67
Special Feature Ring sensor, static output
Switching Frequency 0.0080 kHz

Specifications

SKUCS2421373
MPNNI100R-S32XL-VP44X-H1141
Alternate Part #1510301
UPC/EAN4047101070415
