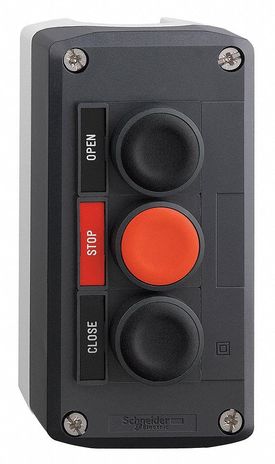

Square D XALD351H29H7

Name: Square D XALD351H29H7
Brand: Square D
SKU: CS230878
Price: 151.64 USD
Availability: OutOfStock

SKU: CS230878MPN: XALD351H29H7

Complete control station, Harmony XALD, dark grey, pushbuttons, 22mm, 2NO +1NC, marked

$151.64

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony XALD Complete Control Station

Product Destination: For XB 22mm control and signaling units* Control Station Application: Three Functions* Color of Base of Enclosure: Light Gray Base RAL 7035* Color of Cover: Dark Gray Cover RAL 7016* Material: Polycarbonate* Operator Profile: 3 Flush Pushbuttons* Control Station Composition: 1 Flush Pushbutton* Cable Entry: 2 knock-out for cable entry, clamping capacity: \<\= 14mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: \<\= 12mm* Connections - Terminals: Screw Clamp Terminals* Rated Insulation Voltage: 600V* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Contacts Material	silver alloy (Ag/Ni)
Control Station Application	three functions
Device Short Name	XALD
Material	polycarbonate
Mechanical Durability	10000000 cycles
Product Certifications	CSA# #UL listed
Product Destination	for XB5 Ø 22 mm control and signalling units
Product Or Component Type	complete control station
Protective Treatment	TH
Range Of Product	Harmony XALD
Standards	EN/IEC 60947-5-4# #EN/IEC 60947-1# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #UL 508# #EN/IEC 60947-5-5
