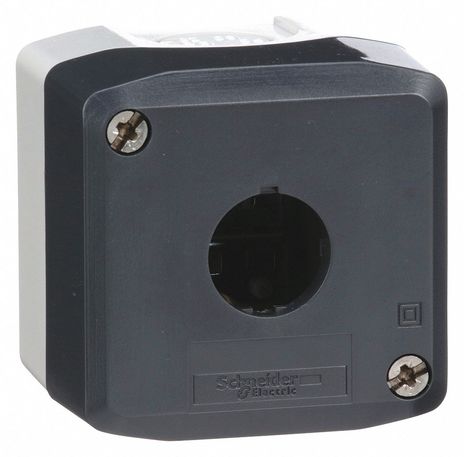

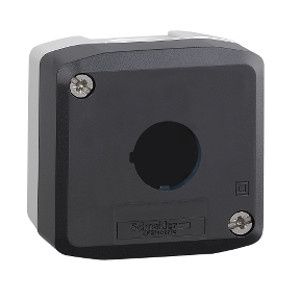

Square D XALD01H7

Name: Square D XALD01H7
Brand: Square D
SKU: CS1675111
Price: 34.55 USD
Availability: OutOfStock

SKU: CS1675111MPN: XALD01H7

Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 1 cut out 22mm, UL CSA certified

$34.55

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony XALD Empty Control Station

Producy Destination: For XB5 22mm control and signaling units* Number of Cut-out: 1 Cut-out* Color of Base of Enclosure: Light Gray Base* Color of Cover: Dark Gray Cover* Material: Polycarbonate* Cable Entry: 1 knock-out for cable entry, clamping capacity: \<\= 14mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: \<\= 12mm* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Assembly Style	for customer assembly
Device Short Name	XALD
Electrical Composition Code	MF2# #MF1# #MR1# #PR1# #SF1# #SR2# #SR1# #PF1# #PF2# #SF2
Group Of Product	UL-CSA grey
Main Group	1 cut-out
Material	polycarbonate
Mounting Of Block	rear mounting# #front mounting
Number Of Cut Out	1 cut-out
Number Of Horizontal Rows	1.0000
Number Of Vertical Rows	1.0000
Product Certifications	UL# #CSA
Product Destination	for XB5 Ø 22 mm control and signalling units
Product Or Component Type	empty control station
Protective Treatment	TH
Range Of Product	Harmony XALD
Standards	EN/IEC 60947-5-5# #EN/IEC 60947-5-1# #CSA C22.2 No 14# #JIS C8201-5-1# #EN/IEC 60947-5-4# #EN/IEC 60947-1# #UL 508# #JIS C8201-1
