Square D XALD02H7

Name: Square D XALD02H7
Brand: Square D
SKU: CS1675114
Price: 40.37 USD
Availability: OutOfStock

SKU: CS1675114MPN: XALD02H7

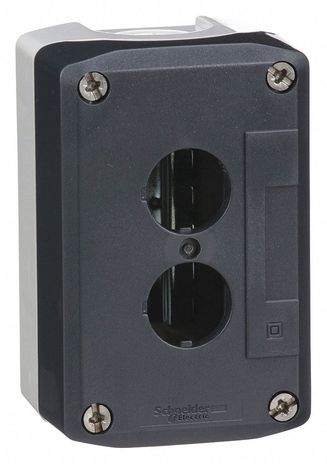

Empty control station, Harmony XALD, XALK, plastic, dark grey lid, light grey base, 2 cut out, UL CSA certified

$40.37

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony XALD Empty Control Station

Producy Destination: For XB5 22mm control and signaling units* Number of Cut-out: 2 Cut-outs* Color of Base of Enclosure: Light Gray Base* Color of Cover: Dark Gray Cover* Material: Polycarbonate* Cable Entry: 2 knock-out for cable entry, clamping capacity: \<\= 14mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: \<\= 12mm* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Assembly Style	for customer assembly
Device Short Name	XALD
Electrical Composition Code	SF2# #MF1# #MF2# #SF1# #SR2# #PF2# #PF1# #PR1# #MR1# #SR1
Group Of Product	UL-CSA grey
Main Group	2 cut-outs
Material	polycarbonate
Mounting Of Block	rear mounting# #front mounting
Number Of Cut Out	2 cut-outs
Number Of Horizontal Rows	1.0000
Number Of Vertical Rows	2.0000
Product Certifications	UL# #CSA
Product Destination	for XB5 Ø 22 mm control and signalling units
Product Or Component Type	empty control station
Protective Treatment	TH
Range Of Product	Harmony XALD
Standards	JIS C8201-5-1# #EN/IEC 60947-5-5# #CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60947-1# #UL 508# #EN/IEC 60947-5-4# #JIS C8201-1
