Schneider Electric XALD164H29H7

Name: Schneider Electric XALD164H29H7
Brand: Schneider Electric
SKU: CS3015202
Price: 87.93 USD
Availability: OutOfStock

SKU: CS3015202MPN: XALD164H29H7Alternate Part #: SENA-XALD164H29H7

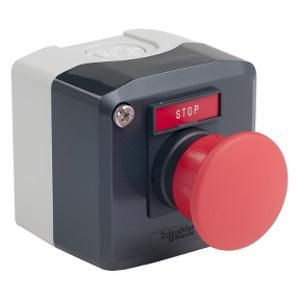

Complete control station, Harmony XALD, dark grey, 1 red mushroom head pushbutton, 40mm, spring return, 1NC, marked STOP

$87.93

Unit

Available on backorder

Quantity

remove

add

Product Details

Harmony XALD Complete Control Station

Product Destination: For XB 22mm control and signaling units* Control Station Application: Stop Function* Color of Base of Enclosure: Light Gray Base RAL 7035* Color of Cover: Dark Gray Cover RAL 7016* Material: Polycarbonate* Operator Profile: 1 Mushroom Head Pushbutton* Operator Description: Red STOP 1 NC* Cable Entry: 1 knock-out for cable entry, clamping capacity: \<\= 14mm, 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: \<\= 12mm* Connections - Terminals: Screw Clamp Terminals* Rated Insulation Voltage: 600V* Degree of Protection: NEMA 4X, 13

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Control Station Application	stop function
Device Short Name	XALD
Marking Location	marking on legend holder
Material	polycarbonate
Mechanical Durability	5000000 cycles
Operator Profile	1 mushroom head push-button
Operator Profile 1	1 mushroom head push-button
Operators Description	red “STOP” 1 NC
Product Certifications	CSA# #UL listed
Product Destination	for XB5 Ø 22 mm control and signalling units
Product Or Component Type	complete control station
Protective Treatment	TH
Range Of Product	Harmony XALD
Standards	JIS C8201-5-1# #EN/IEC 60947-5-5# #UL 508# #CSA C22.2 No 14# #EN/IEC 60947-5-4# #EN/IEC 60947-5-1# #EN/IEC 60947-1# #JIS C8201-1
