Eaton E57-12GU04-C

Name: Eaton E57-12GU04-C
Brand: Eaton
SKU: CS4872653
Price: 92.69 USD
Availability: OutOfStock

SKU: CS4872653MPN: E57-12GU04-CUPC/EAN: 782114288672

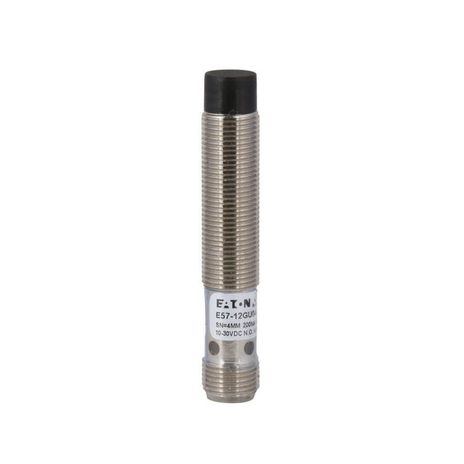

Eaton E57 inductive proximity sensor

Eaton E57-12GU04-A, E57-12GU04-A1, E57-12GU04-A1AB, E57-12GU04-AAB, E57-12GU04-C, E57-12GU04-D, E57-12GU04-DDB, E57-12GU04-G

Product Details

Eaton E57 Global Series Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, dist 4 mm, NPN Open Collector, NO, 100 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, \<1% accuracy, Short circuit protected, Un-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 1%
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	NPN open collector, NO
Contact Rating	100 mA at 30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	100 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
