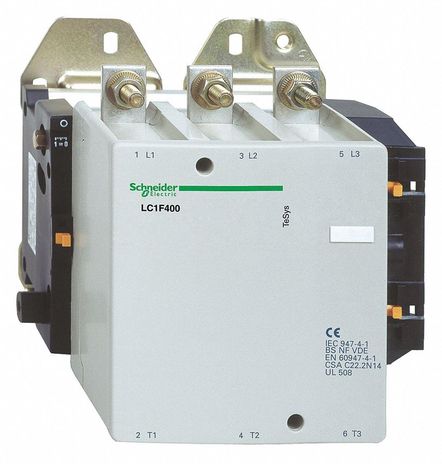

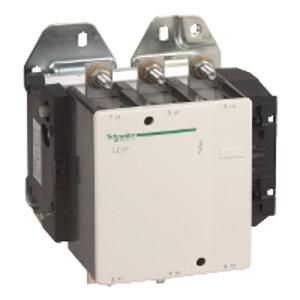

Square D LC1F400

Name: Square D LC1F400
Brand: Square D
SKU: CS4811671
Availability: OutOfStock

SKU: CS4811671MPN: LC1F400

Contactor body,TeSys F,3P(3NO), AC-3, \<\=440V 1100A without coil

Product Details

TeSys D Contactor- Number of Poles: 3-Poles- Pole Contact Composition: 3 NO- Rated Operational Current: 400A- Without Coil- Non-Reversing

Ambient Air Temperature For Operation	-5-55 °C
Ambient Air Temperature For Operation 1	-5-55 °C
Ambient Air Temperature For Storage	-60-80 °C
Compatibility Code	LC1F
Contactor Application	resistive load# #motor control
Device Short Name	LC1F
Mechanical Durability	10 Mcycles
Mounting Support	plate
Overvoltage Category	III
Pole Contact Composition	3 NO
Poles Description	3P
Product Certifications	CB# #ABS# #DNV# #RMRoS# #LROS (Lloyds register of shipping)# #BV# #RINA# #UL# #CSA# #UKCA
Product Name	TeSys F
Product Or Component Type	contactor
Range	TeSys
Standards	JIS C8201-4-1# #IEC 60947-4-1# #IEC 60947-1# #EN 60947-4-1# #EN 60947-1
Utilisation Category	AC-3# #AC-1# #AC-4
