Square D 9001KR1BH13

Name: Square D 9001KR1BH13
Brand: Square D
SKU: CS1676448
Price: 83.89 USD
Availability: InStock

SKU: CS1676448MPN: 9001KR1BH13UPC/EAN: 785901066798

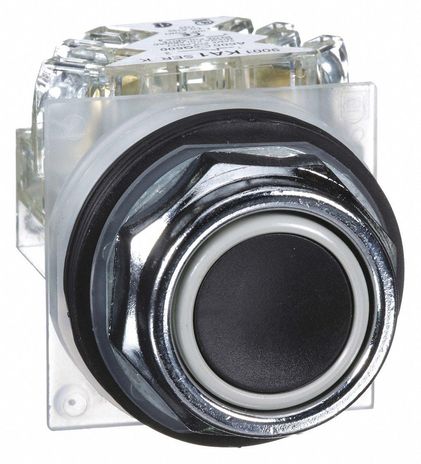

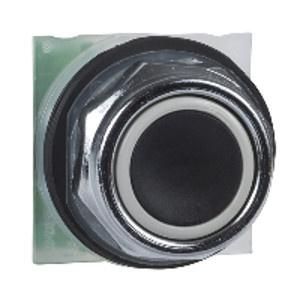

Push button, Harmony 9001K, metal, flush, black, 30mm, spring return, 1 C/O

$83.89

Unit

3 in stock

Quantity

remove

add

Product Details

Harmony 9001K Pushbutton Type K

Mounting Diameter: 30mm* Type of Operator: Spring Return* Operator Profile: Flush, black marking: unmarked* Shape of Signaling Unit Head: Octagonal* Contacts Type and Composition: 1 C/O* Connections - Terminals: Screw clamp terminals* Degree of Protection: IP66 conforming to IEC 60529

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	standard
Contacts Material	silver alloy contacts
Contacts Type And Composition	1 C/O
Device Presentation	complete product
Device Short Name	9001K
Mechanical Durability	5000000 cycles
Mounting Diameter	30 mm
Operating Position	any position
Operator Additional Information	full guard in plastic
Product Certifications	UL 508# #NEMA
Product Or Component Type	push-button
Protective Treatment	TC
Range Of Product	Harmony 9001K
Shape Of Screw Head	cross slotted
Shape Of Signaling Unit Head	octagonal
Standards	JIS C 852# #UL 508# #EN/IEC 60947-5-1# #JIS C 4520# #CSA C22.2 No 14# #EN/IEC 60947-5-4# #EN/IEC 60947-1
Terminals Description Iso N 1	(13-14-11-12)OF
