Square D 9001KR1RH13
SKU: CS1674510MPN: 9001KR1RH13UPC/EAN: 785901066811

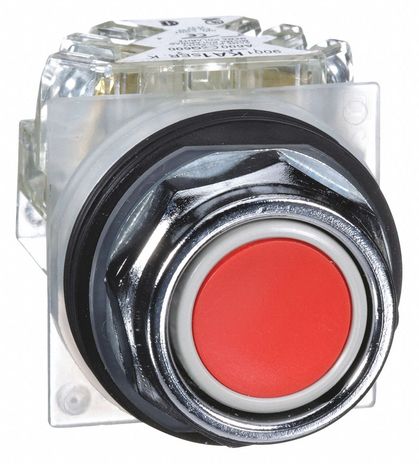

Push button, Harmony 9001K, metal, flush, red, 30mm, spring return, 1 CO
$70.88
UnitAvailable on backorder
Product Details
Red Pushbutton 30mm - Flush Spring Return - 1OC
Attributes
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Operation 1 | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Bezel Material | chromium plated metal |
| Contact Operation | standard |
| Contacts Material | silver alloy contacts |
| Contacts Type And Composition | 1 C/O |
| Device Presentation | complete product |
| Device Short Name | 9001K |
| Mechanical Durability | 5000000 cycles |
| Mounting Diameter | 30 mm |
| Operating Position | any position |
| Operator Additional Information | full guard in plastic |
| Product Certifications | NEMA# #UL 508 |
| Product Or Component Type | push-button |
| Protective Treatment | TC |
| Range Of Product | Harmony 9001K |
| Shape Of Screw Head | cross slotted |
| Shape Of Signaling Unit Head | octagonal |
| Standards | CSA C22.2 No 14# #EN/IEC 60947-5-1# #EN/IEC 60947-5-4# #JIS C 4520# #EN/IEC 60947-1# #JIS C 852# #UL 508 |
| Terminals Description Iso N 1 | (13-14-11-12)OF |
Specifications
| SKU | CS1674510 |
|---|---|
| MPN | 9001KR1RH13 |
| UPC/EAN | 785901066811 |
