Square D 9001KR2GH5

Name: Square D 9001KR2GH5
Brand: Square D
SKU: CS1674534
Price: 52.49 USD
Availability: OutOfStock

SKU: CS1674534MPN: 9001KR2GH5UPC/EAN: 785901033660

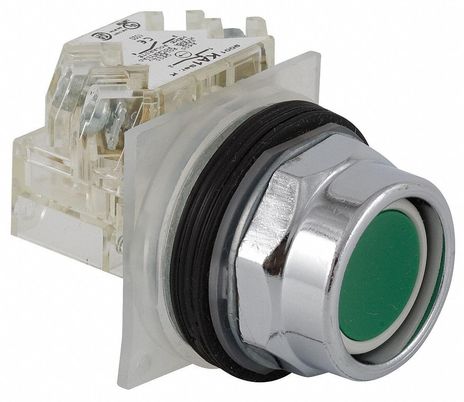

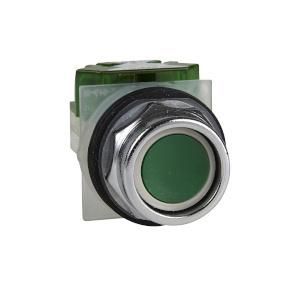

Push-button, Harmony 9001K, metal, recessed, green, 30mm, spring return, 1 NO

$52.49

Unit

Available on backorder

Quantity

remove

add

Product Details

PUSH BUTTON 600VAC 10A 30MM T-K

Ambient Air Temperature For Operation	-25-70 °C
Ambient Air Temperature For Operation 1	-25-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Material	silver alloy contacts
Contacts Type And Composition	1 NO
Device Presentation	complete product
Device Short Name	9001K
Mechanical Durability	5000000 cycles
Mounting Diameter	30 mm
Operating Position	any position
Operator Additional Information	extended metallic guard
Product Certifications	NEMA# #UL 508
Product Or Component Type	push-button
Protective Treatment	TC
Range Of Product	Harmony 9001K
Shape Of Screw Head	cross slotted
Shape Of Signaling Unit Head	octagonal
Standards	EN/IEC 60947-1# #UL 508# #EN/IEC 60947-5-1# #EN/IEC 60947-5-4# #JIS C 852# #JIS C 4520# #CSA C22.2 No 14
Terminals Description Iso N 1	(13-14)NO
