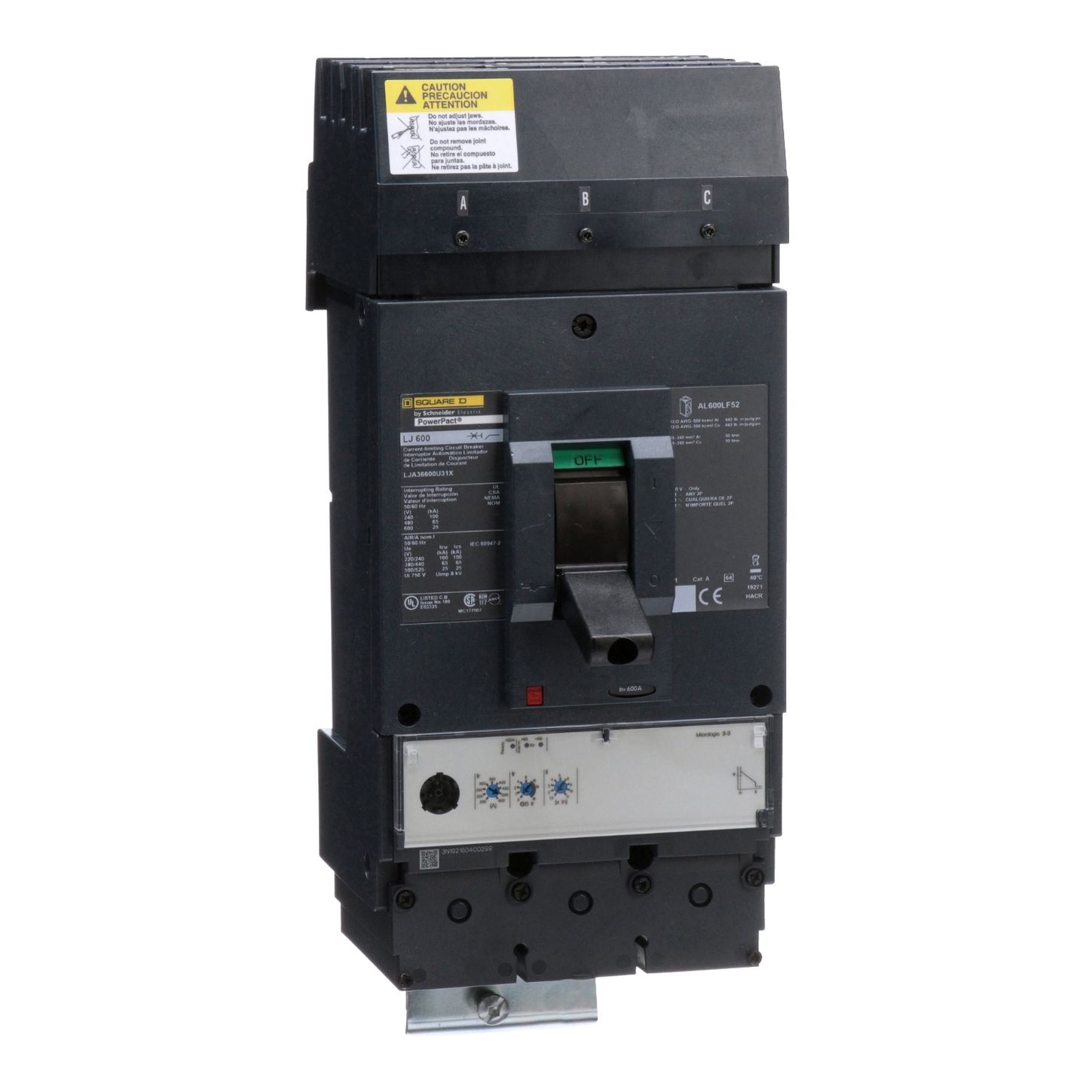

Square D LJA36600U31X

Name: Square D LJA36600U31X
Brand: Square D
SKU: CS4811714
Price: 9375.37 USD
Availability: OutOfStock

SKU: CS4811714MPN: LJA36600U31XUPC/EAN: 785901404712

Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC

$9,375.37

Unit

Available on backorder

Quantity

remove

add

Product Details

PowerPact L, Circuit breaker, I-Line, Micrologic 3.3, 600A, 80% rated, 3 pole, 25 kA, 600 VAC, phase ABC

Ambient Air Temperature For Operation	-2-70 °C
Ambient Air Temperature For Operation 1	-2-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	J
Communication Interface	Modbus# #Ethernet
Continuous Current Rating	0.80000001192093
Control Type	toggle
Device Application	distribution
Device Short Name	L-Frame
Long Time Pick Up Adjustment Range	0.25…1 x In
Mounting Support	bracket
Network Frequency	50/60 Hz
Phase Connection	ABC
Poles Description	3P
Product Name	PowerPact L
Product Or Component Type	circuit breaker
Protection Technology	current limiter
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL600LF52K3
Trip Unit Name	Micrologic 3.3
Utilisation Category	category A
