Square D 9007MS05S0100

Name: Square D 9007MS05S0100
Brand: Square D
SKU: CS1656085
Availability: OutOfStock

SKU: CS1656085MPN: 9007MS05S0100UPC/EAN: 785901319627

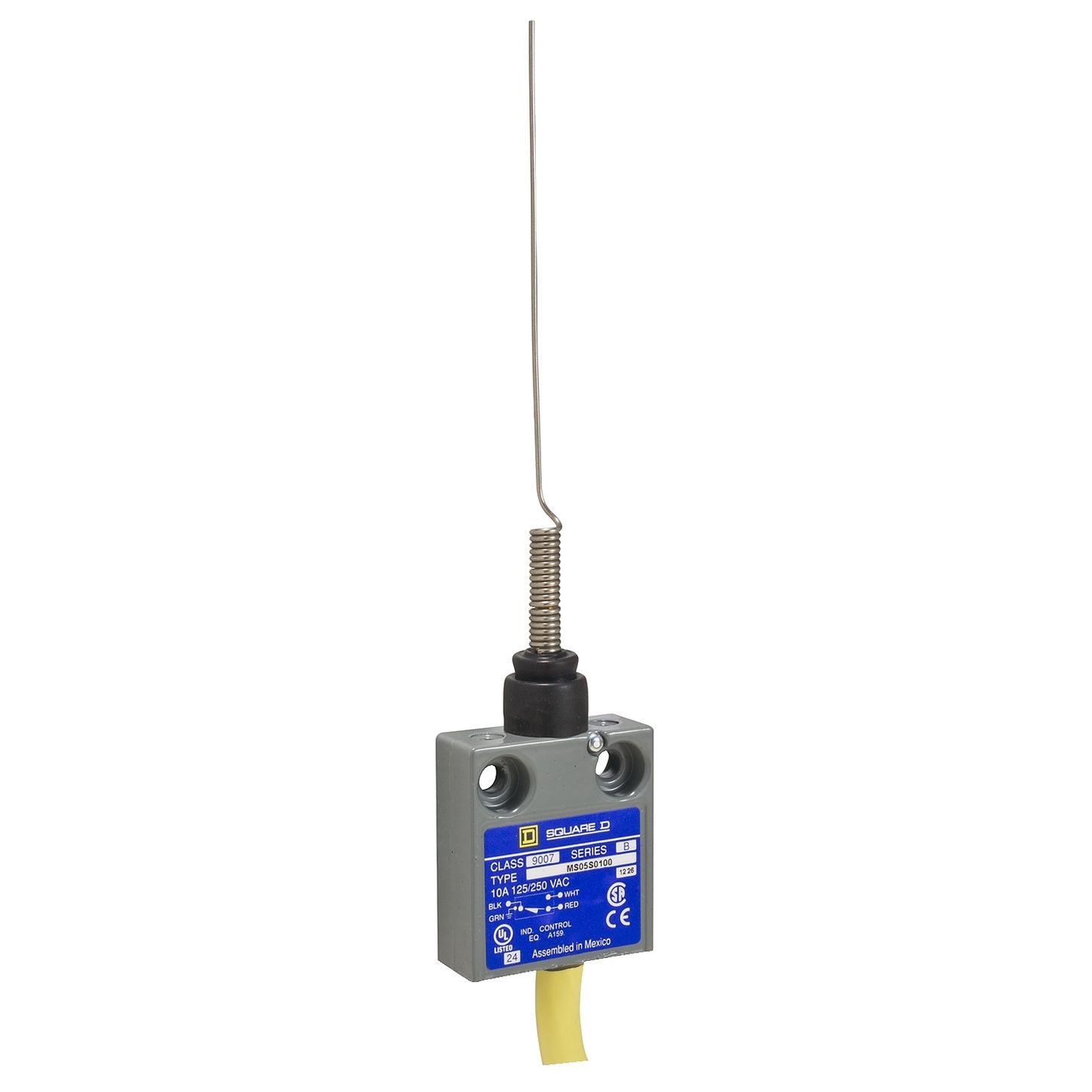

Limit switch, 9007, 240 VAC 10amp ms +options

Product Details

LIMIT SWITCH 240VAC 10AMP MS +OPTIONS

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Operation	-40-220 °F
Ambient Air Temperature For Operation 1	-40-220 °F
Ambient Air Temperature For Storage	-40-220 °F
Body Material	cast zinc
Body Type	fixed
Contact Form	Form C
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	NC-NO
Device Short Name	9007MS/ML
Electrical Durability	100000 cycles
Fixing Mode	by the body
Head Type	multi-directional head
Marking	UL# #CE# #CSA
Material	metal
Maximum Force For Tripping	15 ozf
Mechanical Durability	10000000 cycles
Movement Of Operating Head	multi-directional
Number Of Poles	1
Positive Opening	without
Product Certifications	CE# #CSA# #UL
Product Or Component Type	limit switch
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Sensor Design	miniature
Series Name	miniature potted
Standards	LR 25490 Class 32 11 03# #E78403
Switch Actuation	by any moving part
Switch Function	SPDT
Terminals Description Iso N 1	(red)NC# #(green-yellow)gnd# #(white)NO# #(black)com
Wire Insulation Material	PVC
