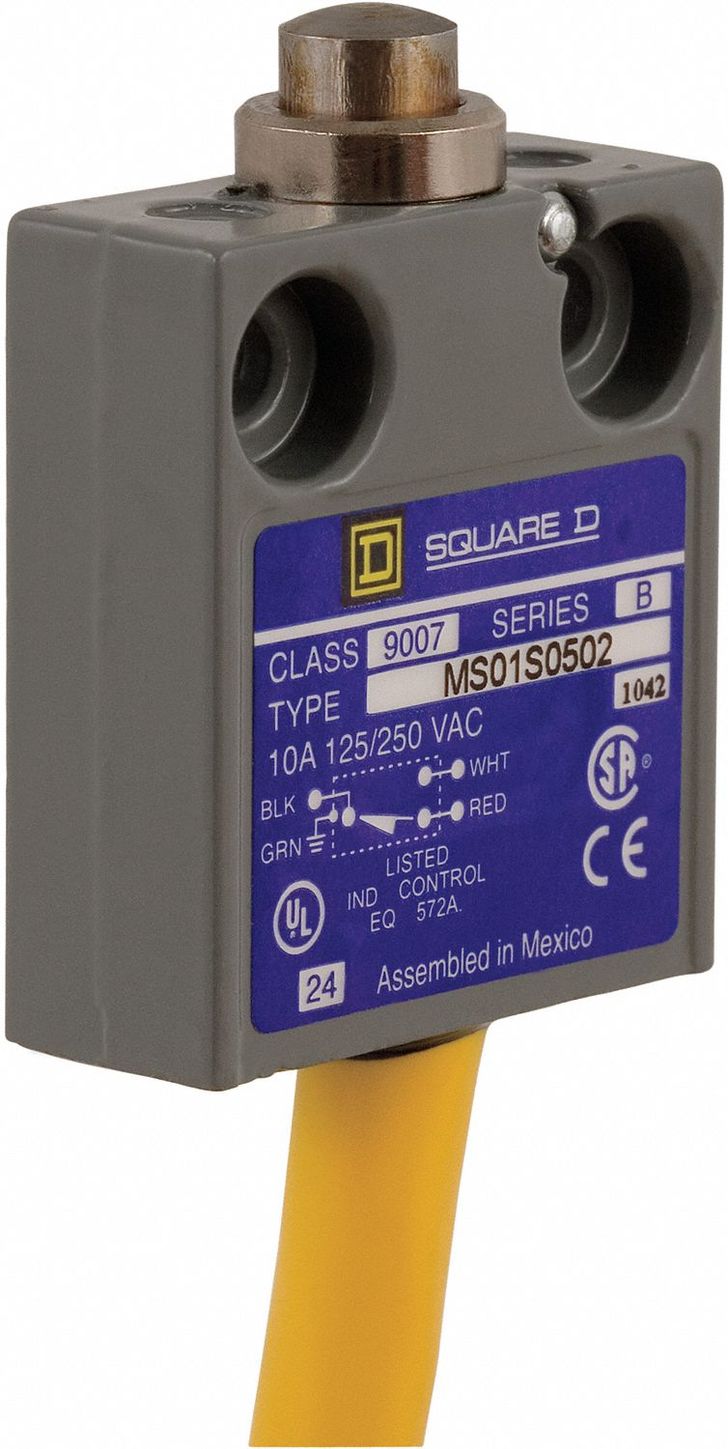

Square D 9007MS01S0502

Name: Square D 9007MS01S0502
Brand: Square D
SKU: CS1656143
Availability: OutOfStock

SKU: CS1656143MPN: 9007MS01S0502UPC/EAN: 785901682967

Limit switch, 9007, 240 VAC 10amp ms +options

Product Details

General Purpose Limit Switch Actuator Style - Limit Switch Plunger Actuator Location - Limit Switch Top AC Contact Rating - Limit Switch 10A @ 300V DC Contact Rating - Limit Switch 5A @ 28V Contact Form- Switches SPDT Actuator Length - Limit Switch 0.7 in Body Height - Limit Switch 1.75 in Body Width - Limit Switch 1.58 in Body Depth - Limit Switch 0.62 in Boot Sealed Actuator - Limit Switch No Body Style - Limit Switch Miniature NEMA Rating 1 12 13 2 4 6 6P

Attributes

Ithe Conventional Enclosed Thermal Current	0.417
Ambient Air Temperature For Operation	-40-220 °F
Ambient Air Temperature For Operation 1	-40-220 °F
Ambient Air Temperature For Storage	-40-220 °F
Body Material	cast zinc
Body Type	fixed
Contact Form	Form C
Contact Operation	snap action
Contacts Material	silver contacts
Contacts Type And Composition	NC-NO
Device Short Name	9007MS/ML
Electrical Durability	100000 cycles
Fixing Mode	by the body
Head Type	plunger head
Marking	UL# #CSA# #CE
Material	metal
Maximum Force For Tripping	80 ozf
Mechanical Durability	10000000 cycles
Movement Of Operating Head	linear
Number Of Poles	1
Positive Opening	without
Product Certifications	CE# #CSA# #UL
Product Or Component Type	limit switch
Protective Treatment	epoxy powder coat
Range Of Product	9007
Sale Per Indivisible Quantity	1.0000
Sensor Design	miniature
Series Name	miniature potted
Standards	LR 25490 Class 32 11 03# #E78403
Switch Actuation	on end
Switch Function	SPDT
Terminals Description Iso N 1	(green-yellow)gnd# #(red)NC# #(white)NO# #(black)com
Wire Insulation Material	PVC
