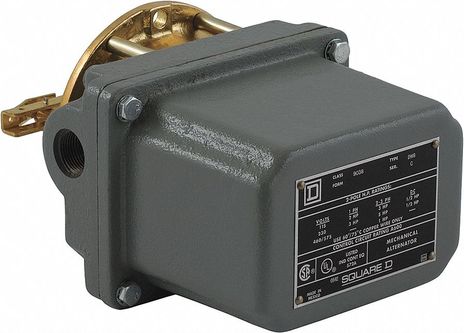

Telemecanique 9038DW8

Name: Telemecanique 9038DW8
Brand: Telemecanique
SKU: CS1652405
Availability: OutOfStock

SKU: CS1652405MPN: 9038DW8UPC/EAN: 785901055280

Mechanical alternator, Square D Pumptrol, mech closed tank, NEMA 4, flange top mounted, 4 NC DPST DB contacts

Product Details

Mechanical Alternator:

Type: D* Used to control the liquid level in industrial closed tanks* Enclosure Rating: NEMA 4* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2-Pole

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	top mounted closed tank
Sena Device Mounting	flange
Sena Device Short Name	9038D
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	cast aluminium
Sena Factory Modification	without
Sena Float Position	any
Sena Float Rod Angle	horizontal
Sena Kit Composition	rod and float are to be choosen in accessories# #float switch
Sena Local Signalling	without
Sena Materials In Contact With Fluid	stainless steel 316# #stainlesss steel 304# #yellow brass# #nitrile (Buna-N) or equivalent rubber
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR26817# #UL listed file E12158# #UL listed file E12443
Sena Product Destination	for closed tank
Sena Product Or Component Type	mechanical alternator
Sena Product Specific Application	mechanically alternating the operation of two pumps or motors
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	UL 508# #CE
Sena Terminal Block Type	8 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
