Telemecanique 9038CG36N4LZ20

Name: Telemecanique 9038CG36N4LZ20
Brand: Telemecanique
SKU: CS325581
Price: 579.56 USD
Availability: OutOfStock

SKU: CS325581MPN: 9038CG36N4LZ20UPC/EAN: 785901116400

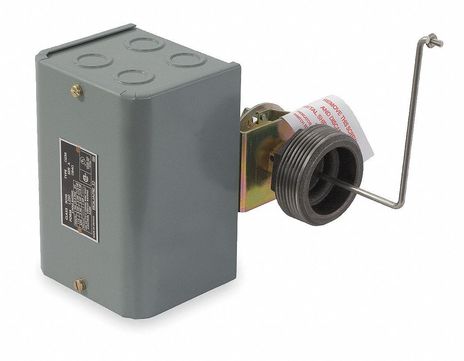

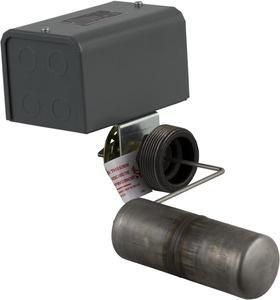

Mechanical alternator, Square D Pumptrol, mech closed tank, NEMA 1, screw in bushing, 4 NC DPST DB contacts

Product Details

Mechanical Alternator:

Type: C* Primarily used on condensation pumps* Enclosure Rating: NEMA 1* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2-Pole* Float Position: Left* Float Movement: 4.75 to 9.25 Inches

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank with bushing
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9038C
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	painted cold-rolled steel
Sena Factory Modification	omit float, two-level non-alternating unit
Sena Float Position	left
Sena Float Rod Angle	90° (offset)
Sena Kit Composition	float# #rod# #float switch
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	stainless steel 316# #viton# #stainlesss steel 304# #cast iron# #yellow brass
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Destination	for closed tank
Sena Product Or Component Type	mechanical alternator
Sena Product Specific Application	mechanically alternating the operation of two pumps or motors
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	CE# #UL 508
Sena Terminal Block Type	8 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
