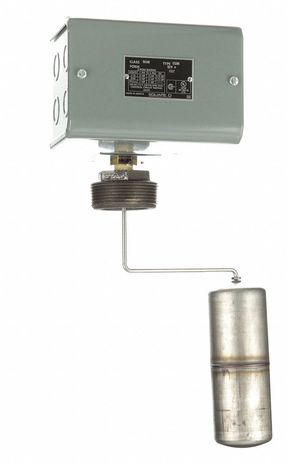

Telemecanique 9038CG36

Name: Telemecanique 9038CG36
Brand: Telemecanique
SKU: CS1059204
Price: 481.14 USD
Availability: InStock

SKU: CS1059204MPN: 9038CG36UPC/EAN: 785901064442

Mechanical alternator, Square D Pumptrol, mech closed tank, NEMA 1, screw in bushing, 4 NC DPST DB contacts

$481.14

Unit

4 in stock

Quantity

remove

add

Product Details

Mechanical Alternator:

Type: C* Primarily used on condensation pumps* Enclosure Rating: NEMA 1* 1-Phase: 2HP@115VAC - 3HP@230VAC; 3-Phase: 3HP@115VAC - 5HP@230VAC - 1HP@460/575; 0.25HP@32VDC - 0.5HP@115/230VDC* Mounting: Flange* 575VAC* 2-Pole* Float Position: Left* Float Movement: 4.75 to 9.25 Inches

Sena Ambient Air Temperature For Operation	-22-220 °F
Sena Ambient Air Temperature For Operation 1	-22-220 °F
Sena Ambient Air Temperature For Storage	-22-220 °F
Sena Device Application	closed tank with bushing
Sena Device Mounting	screw-in bushing
Sena Device Short Name	9038C
Sena Electrical Circuit Type	power circuit
Sena Enclosure Material	painted cold-rolled steel
Sena Factory Modification	without
Sena Float Position	left
Sena Float Rod Angle	90° (offset)
Sena Kit Composition	float# #float switch# #rod
Sena Local Signalling	with external pointer
Sena Materials In Contact With Fluid	cast iron# #yellow brass# #nitrile (Buna-N) or equivalent rubber# #stainlesss steel 304# #stainless steel 316
Sena Maximum Operating Rate	60 cyc/mn
Sena Mechanical Durability	300 cycles
Sena Operating Position	vertical position only
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Destination	for closed tank
Sena Product Or Component Type	mechanical alternator
Sena Product Specific Application	mechanically alternating the operation of two pumps or motors
Sena Quantity Per Set	set of 1
Sena Range Of Product	Square D Pumptrol
Sena Standards	UL 508# #CE
Sena Terminal Block Type	8 terminals
Sena Terminals Description Iso N 1	line-load-load-line
Sena Type Of Packing	individual
