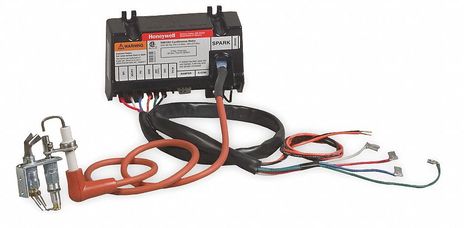

Resideo Y8610U6006

Converts atmospheric standing pilot gas systems to intermittent pilot. Max capacity of 270 kBtuh

Complete kits converting conventional standing pilot system to intermittent pilot system. For use with 24 Vac gas-fired atmospheric furnaces, boiler and heating appliances. (For 270,000 BTU units)

Specifications

• Description: Provide electronic control of intermittent pilot ignition systems used on gas fired furnaces, boilers, and other heating appliances.
• System Type: Intermittent Pilot
• Ignition Sequence: Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
• Typical Gas Control: VR8204, VR8304
• Type of Gas: Natural or LP
• Flame Sense: Single Rod or Two Rods
• Ignition Source: Internal high voltage spark generator
• Prepurge: 0 or 30 seconds
• Ignition trials to lockout: continuous retry
• Lockout Timing: 15 or 90 seconds
• Includes: VR8304M3558 (½ x ¾; 3.5” setting; 270kBtu/hr at 1 in. p.d.)

Features

• Y8610U kits are for use with natural or LP gas: provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated.
• Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed.
